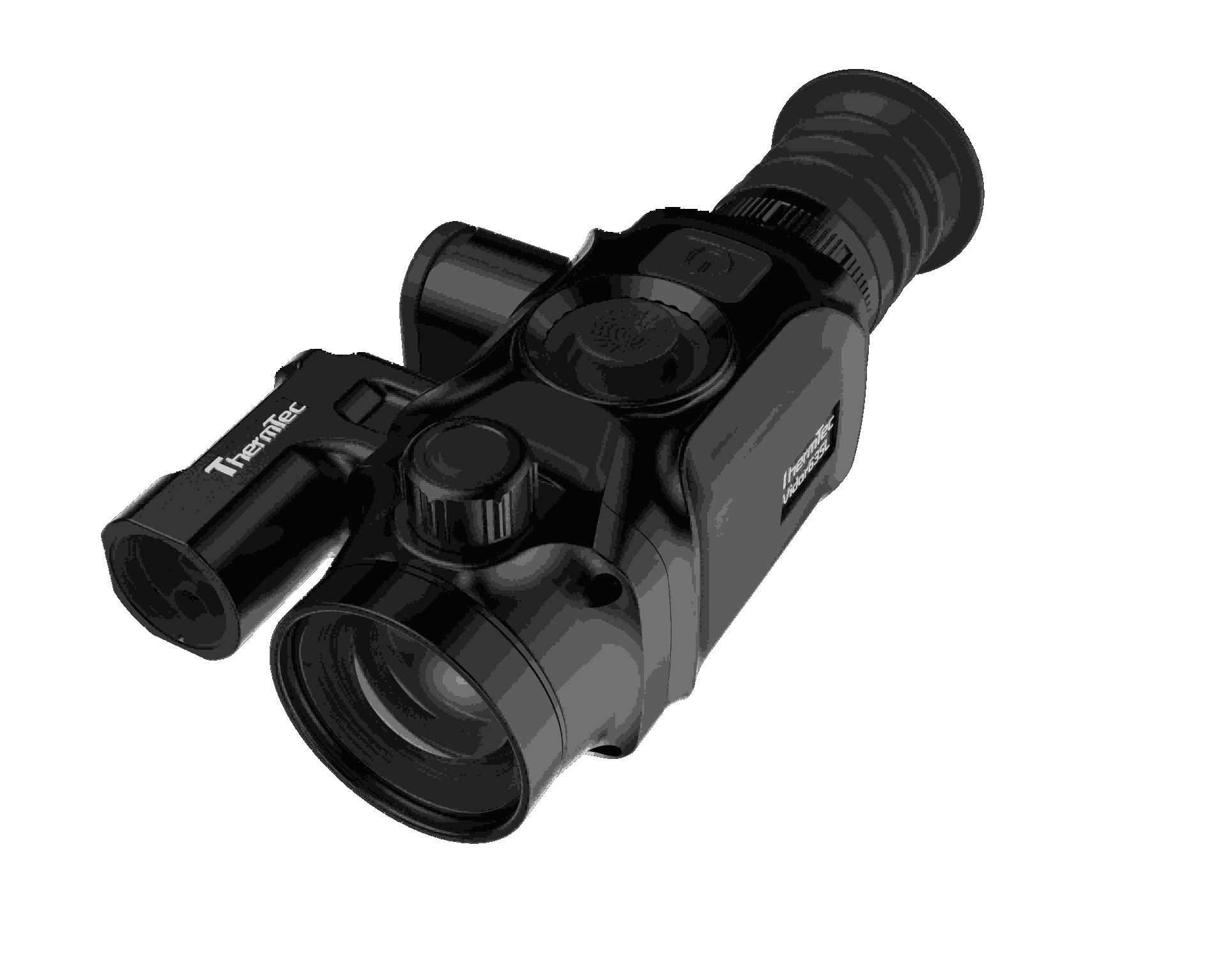

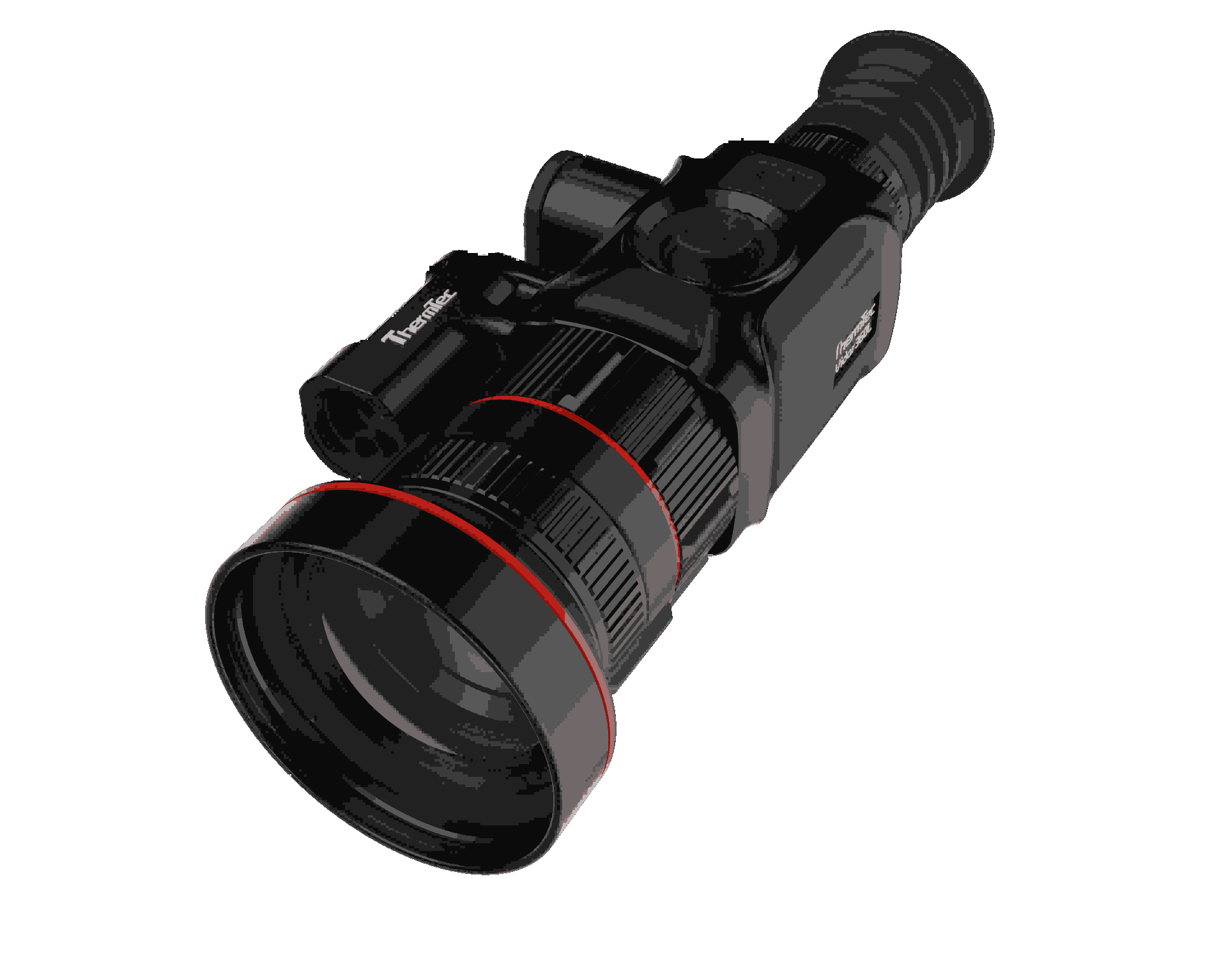

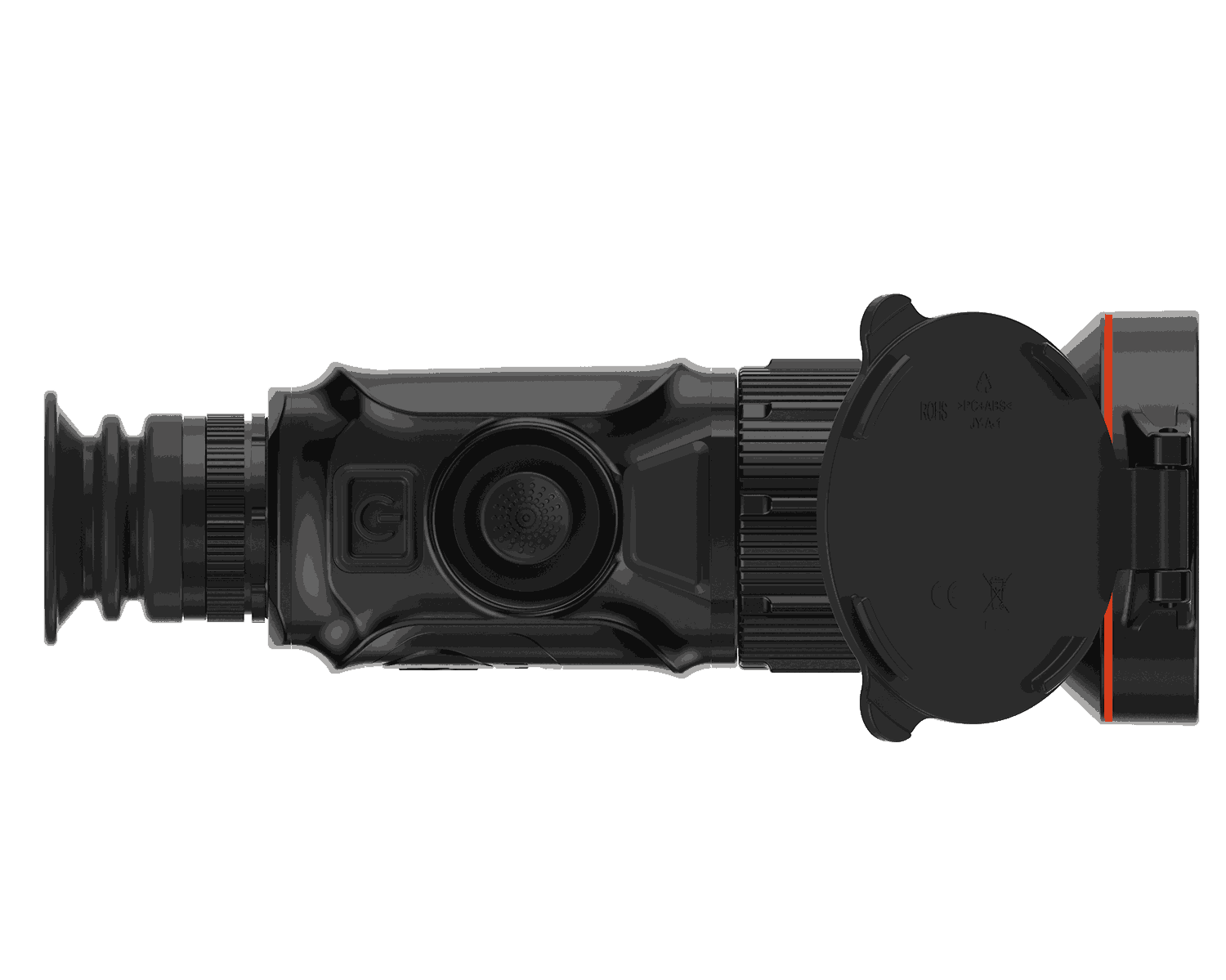

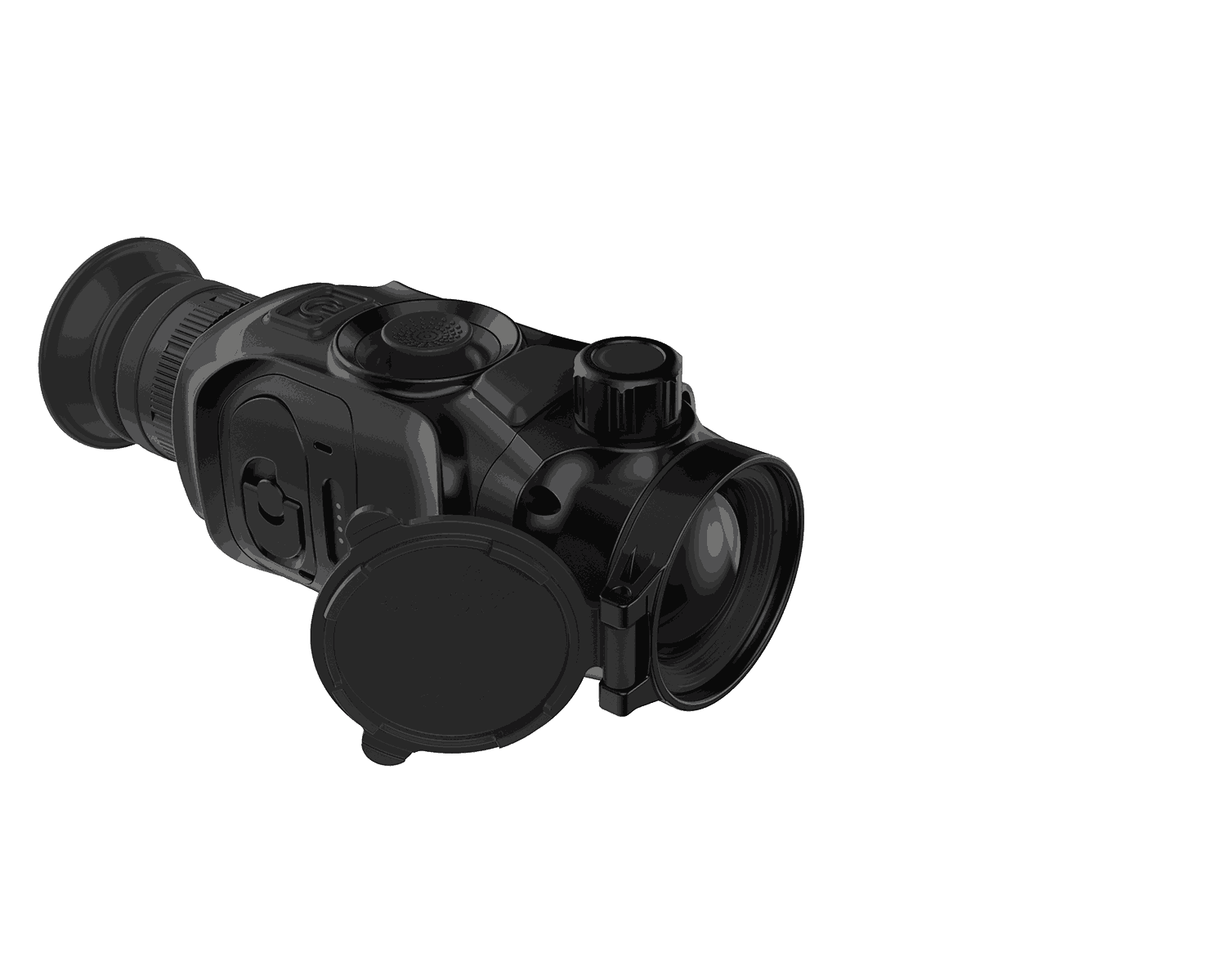

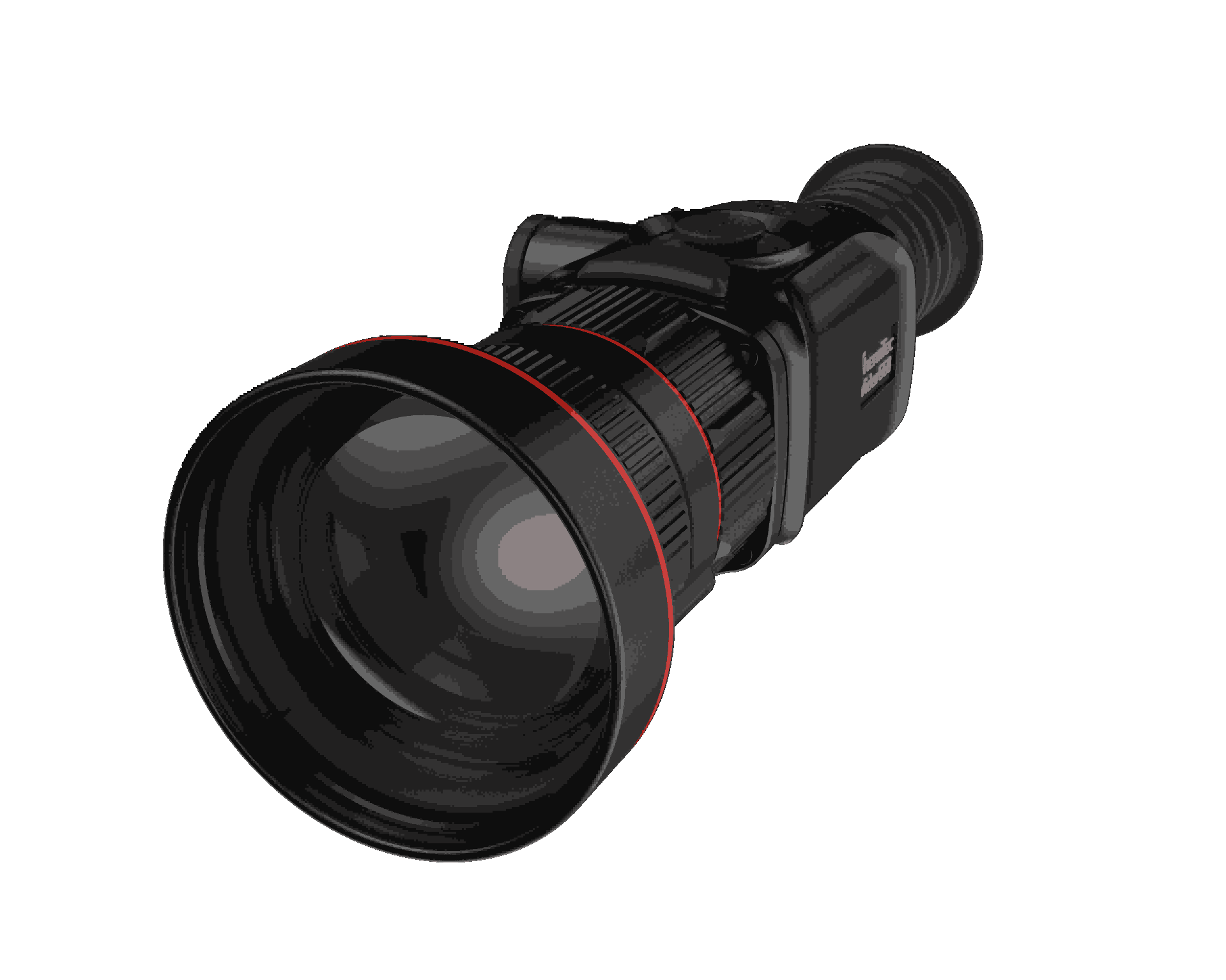

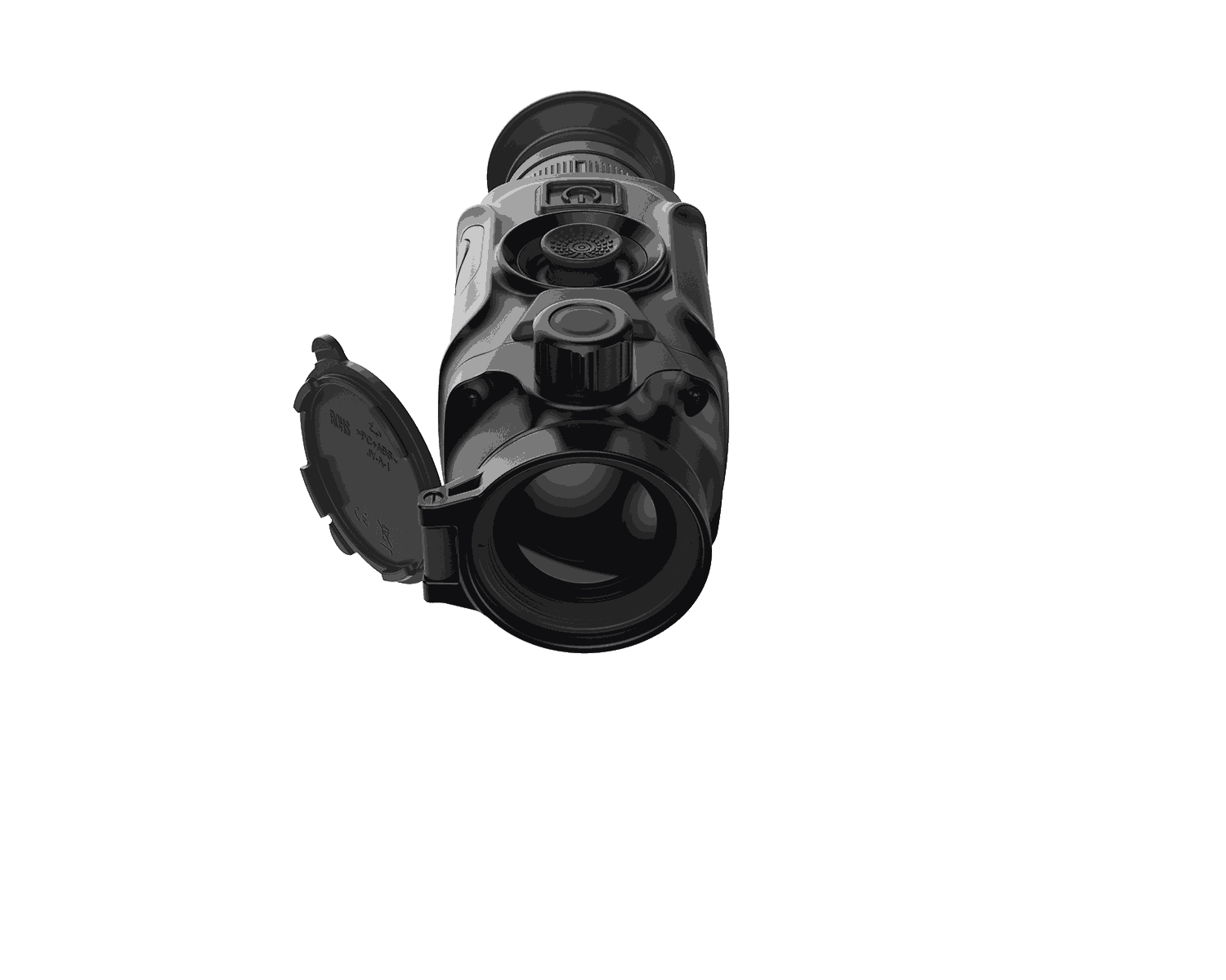

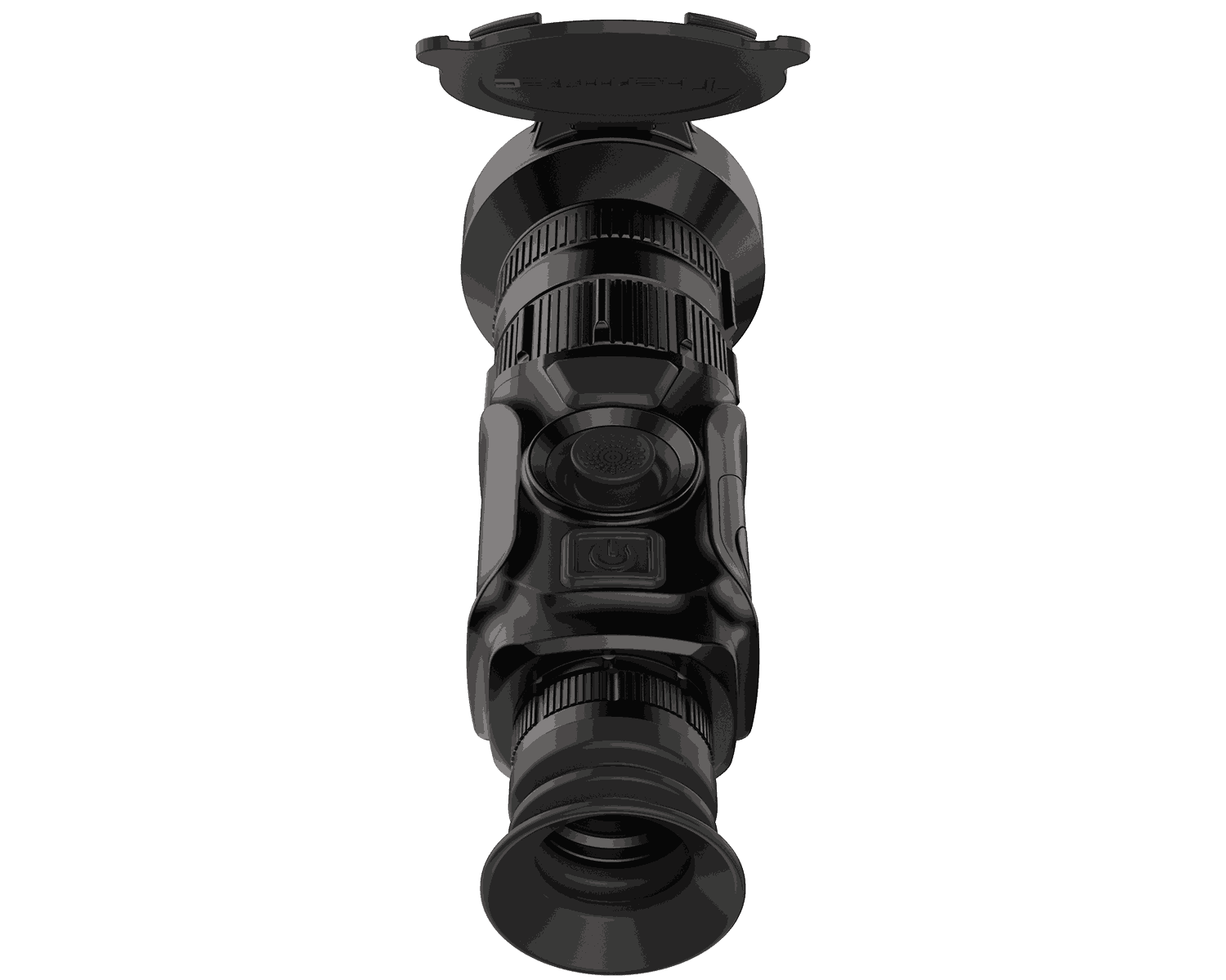

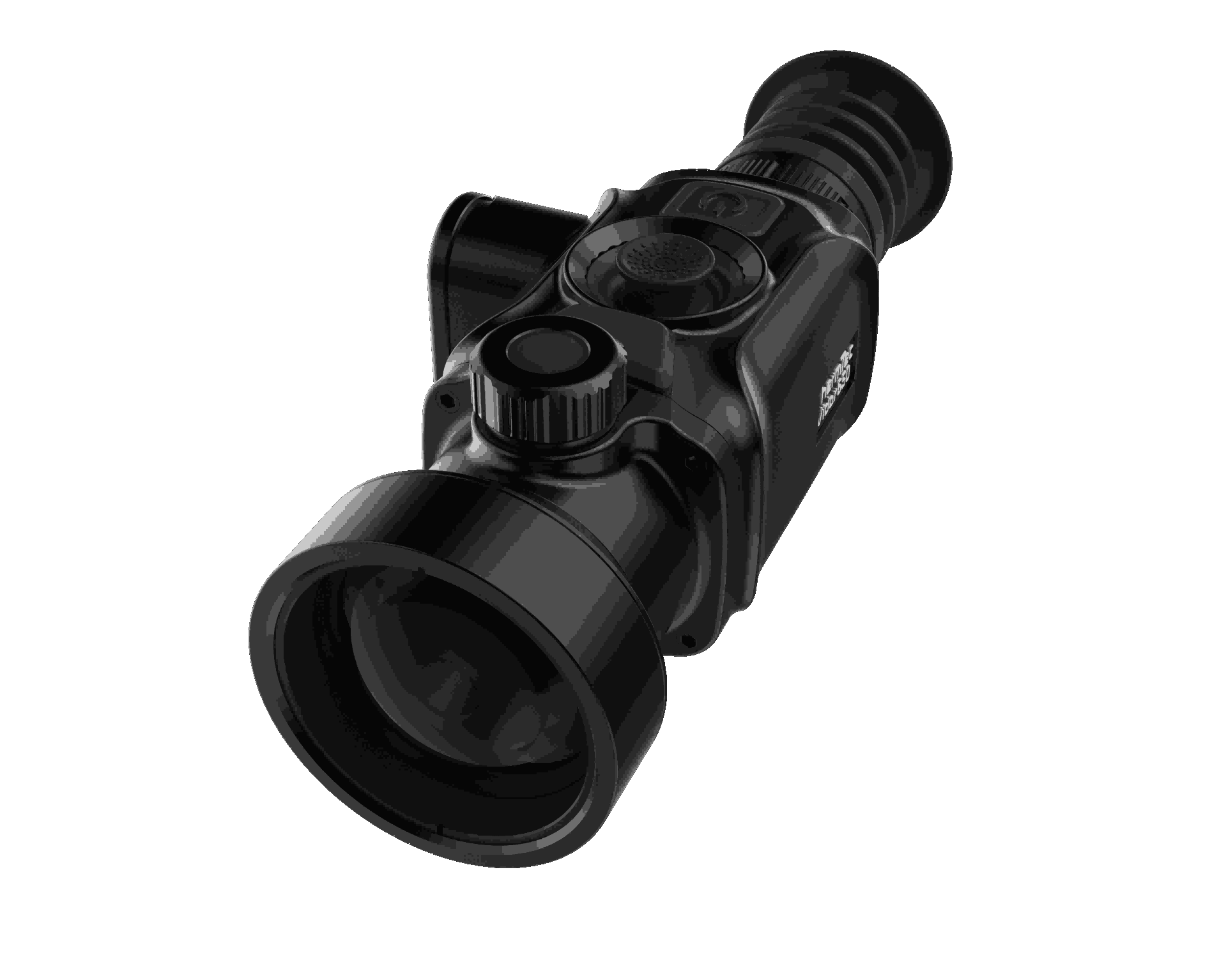

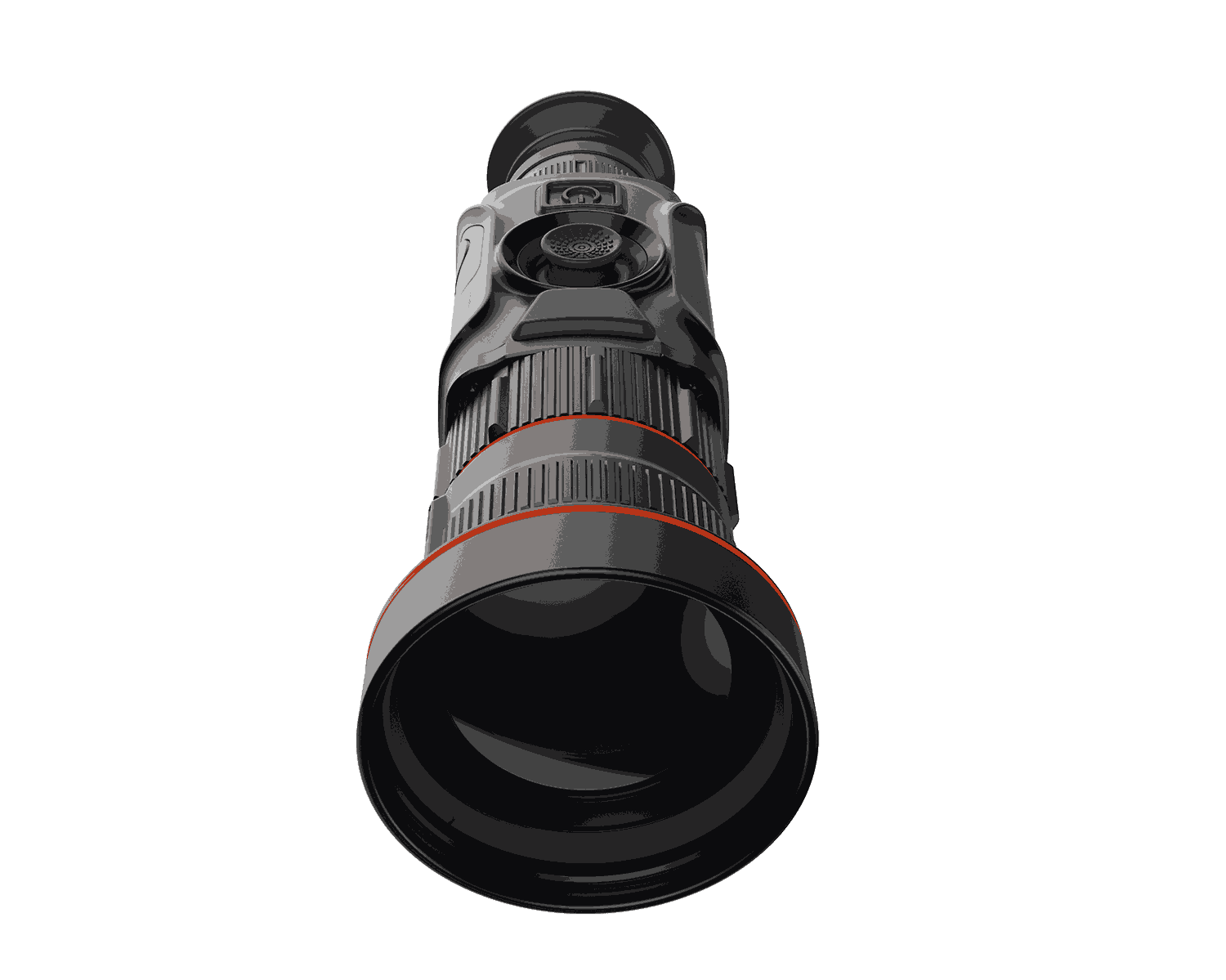

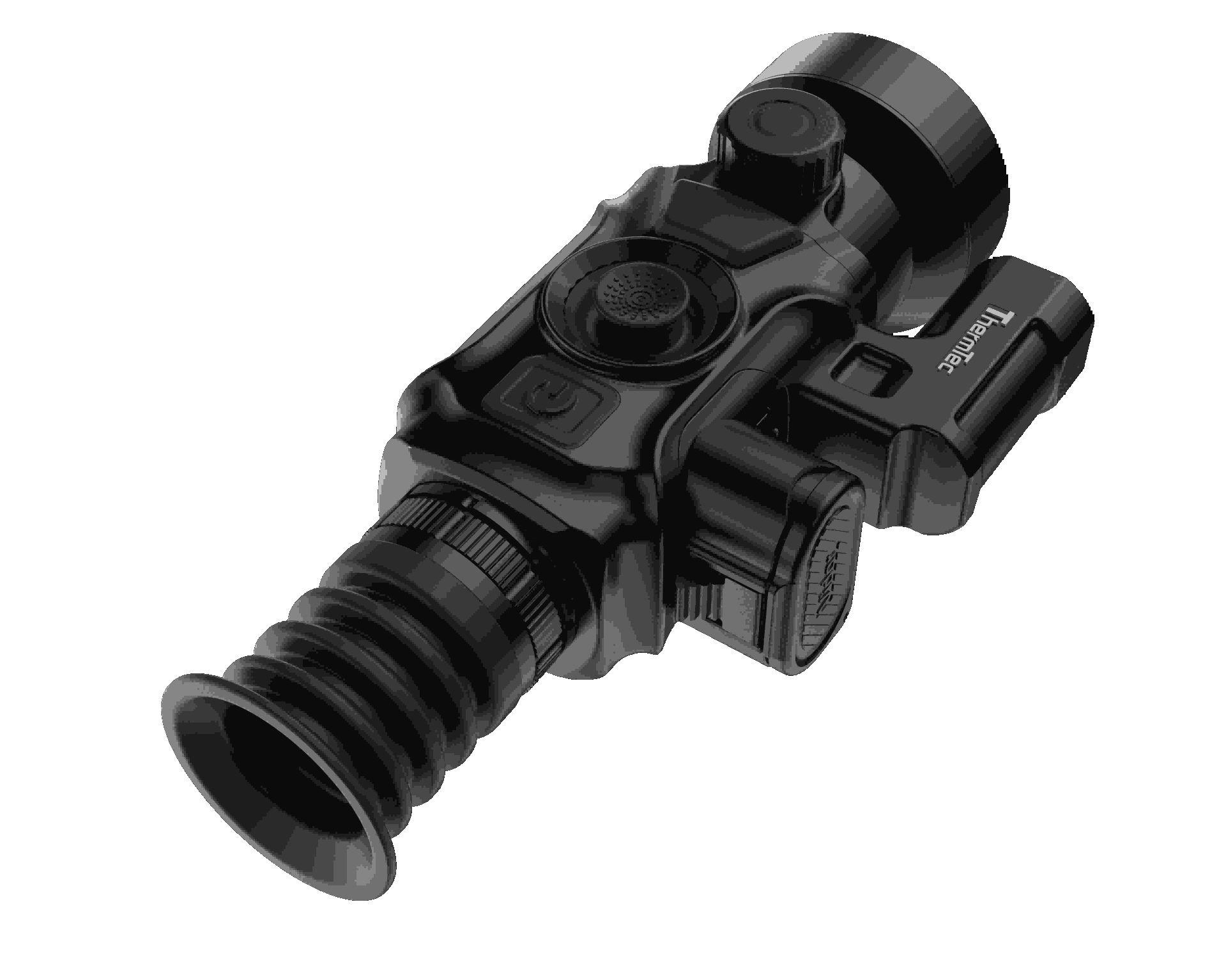

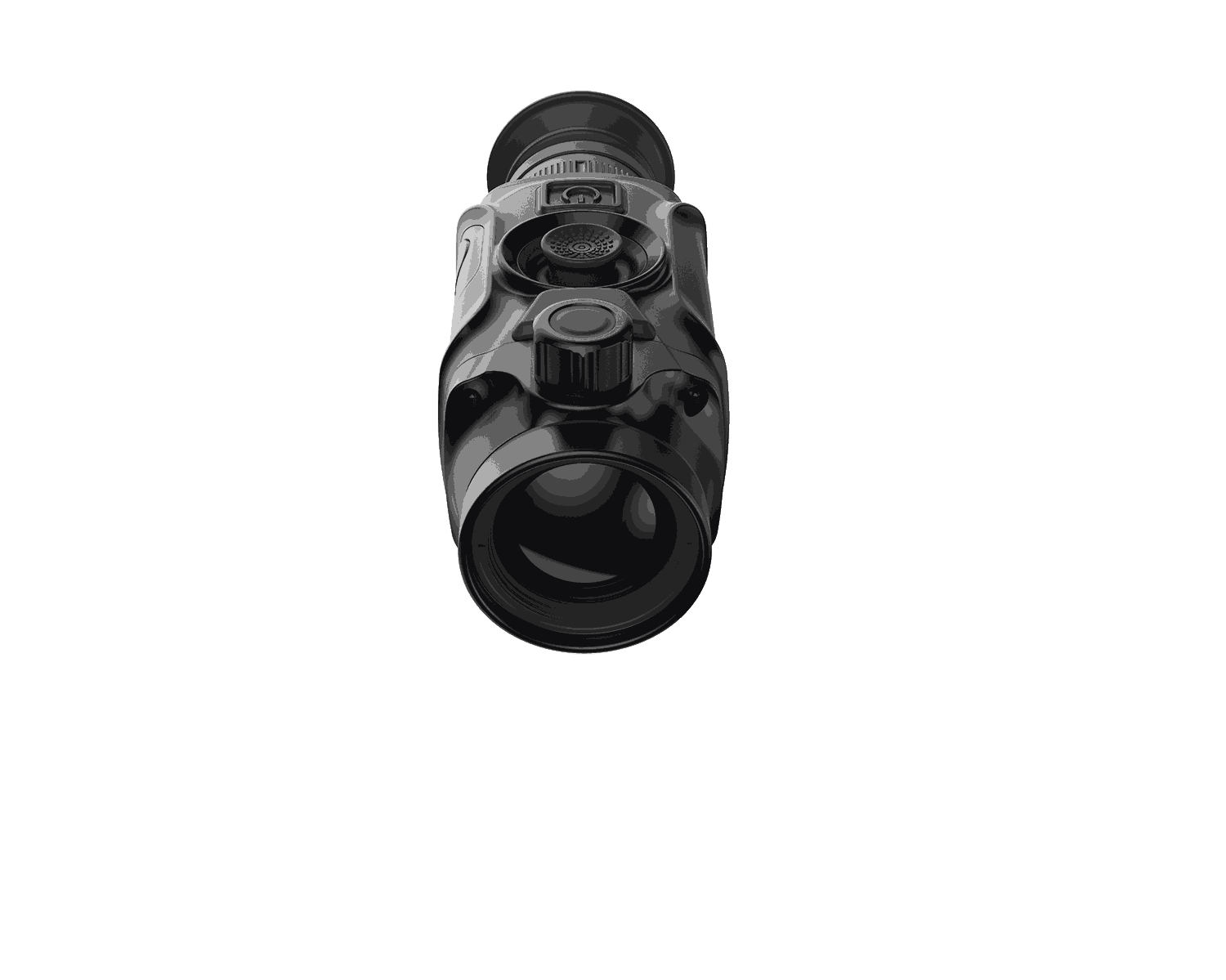

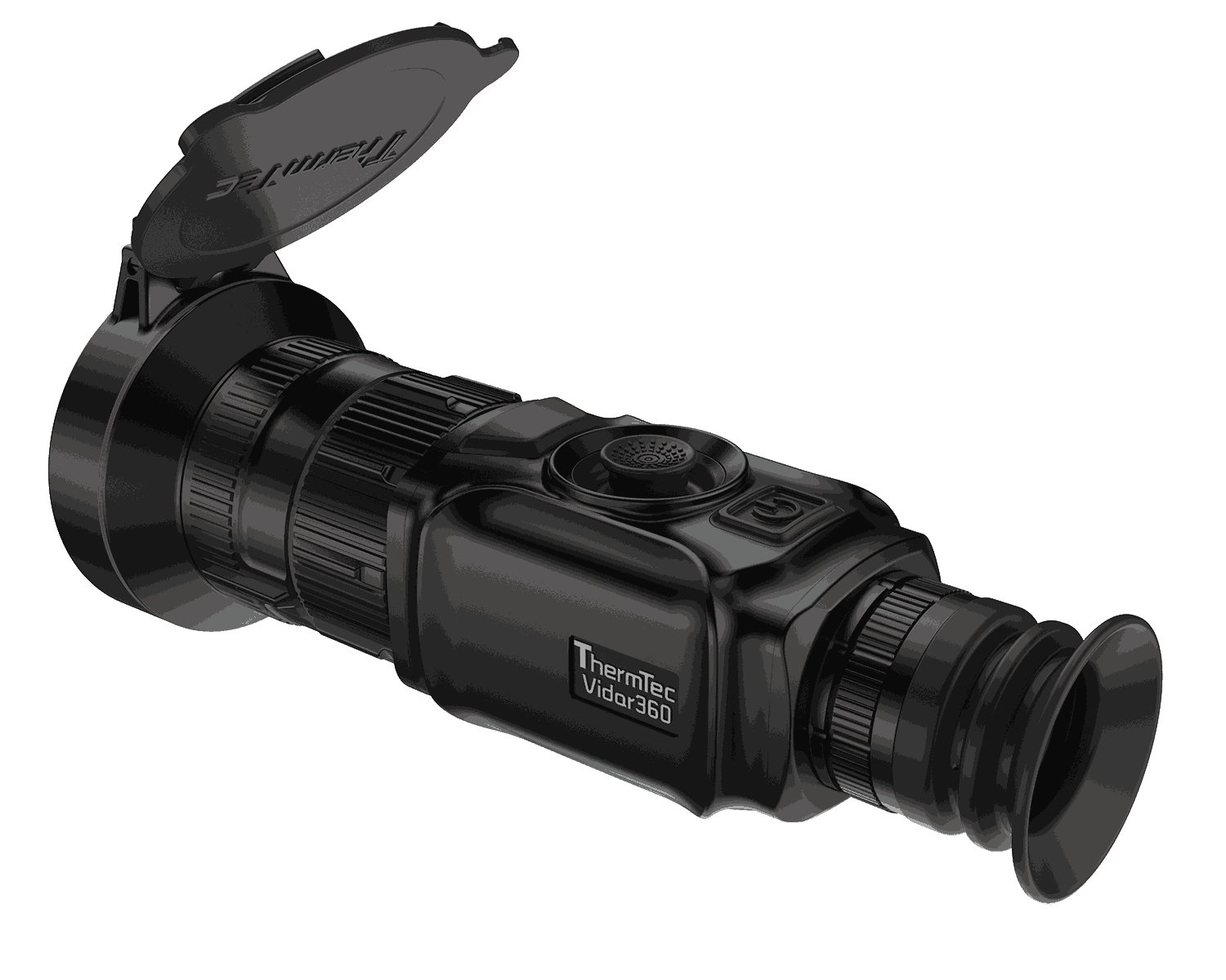

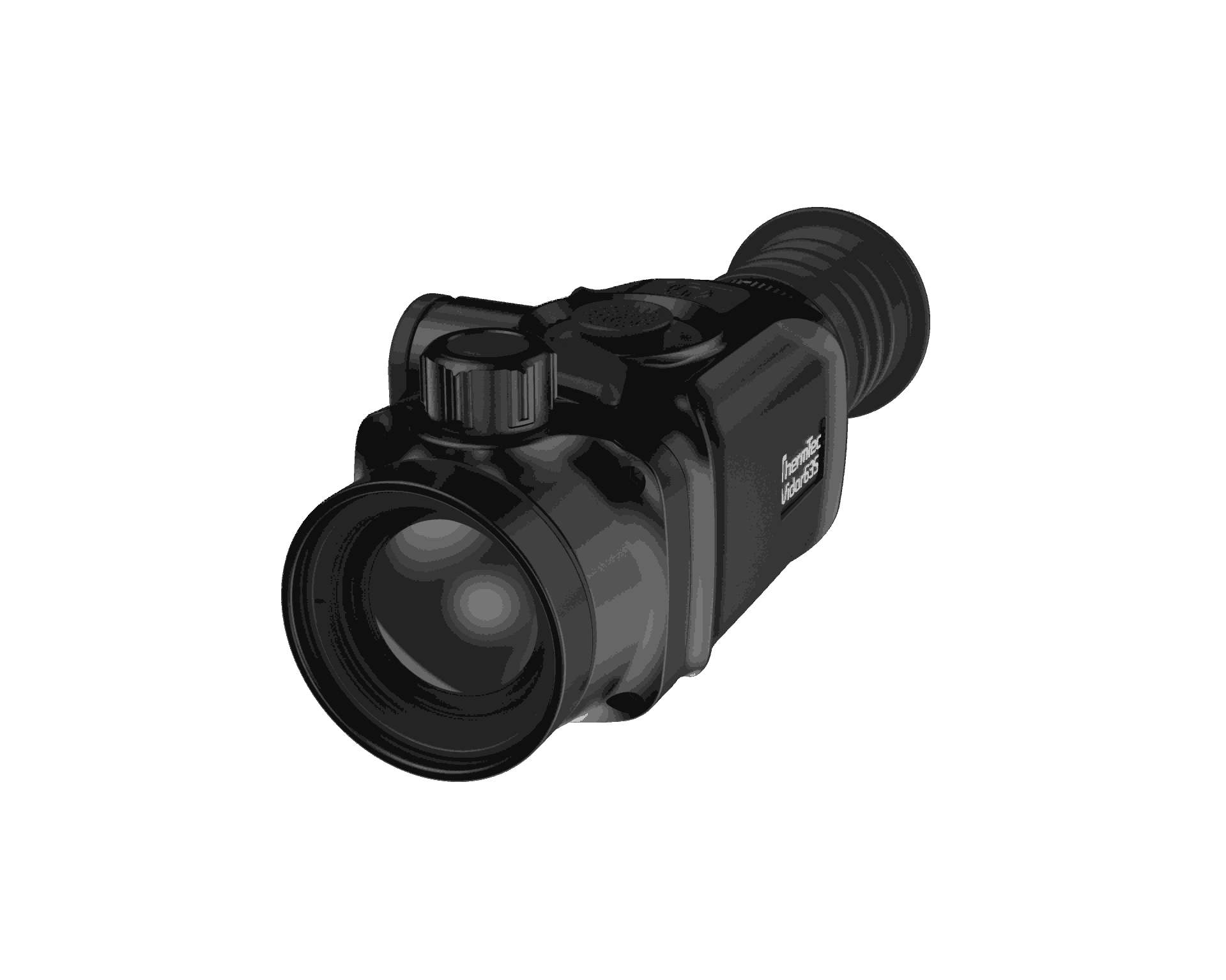

Thermal Imaging Sight

VIDAR SERIES

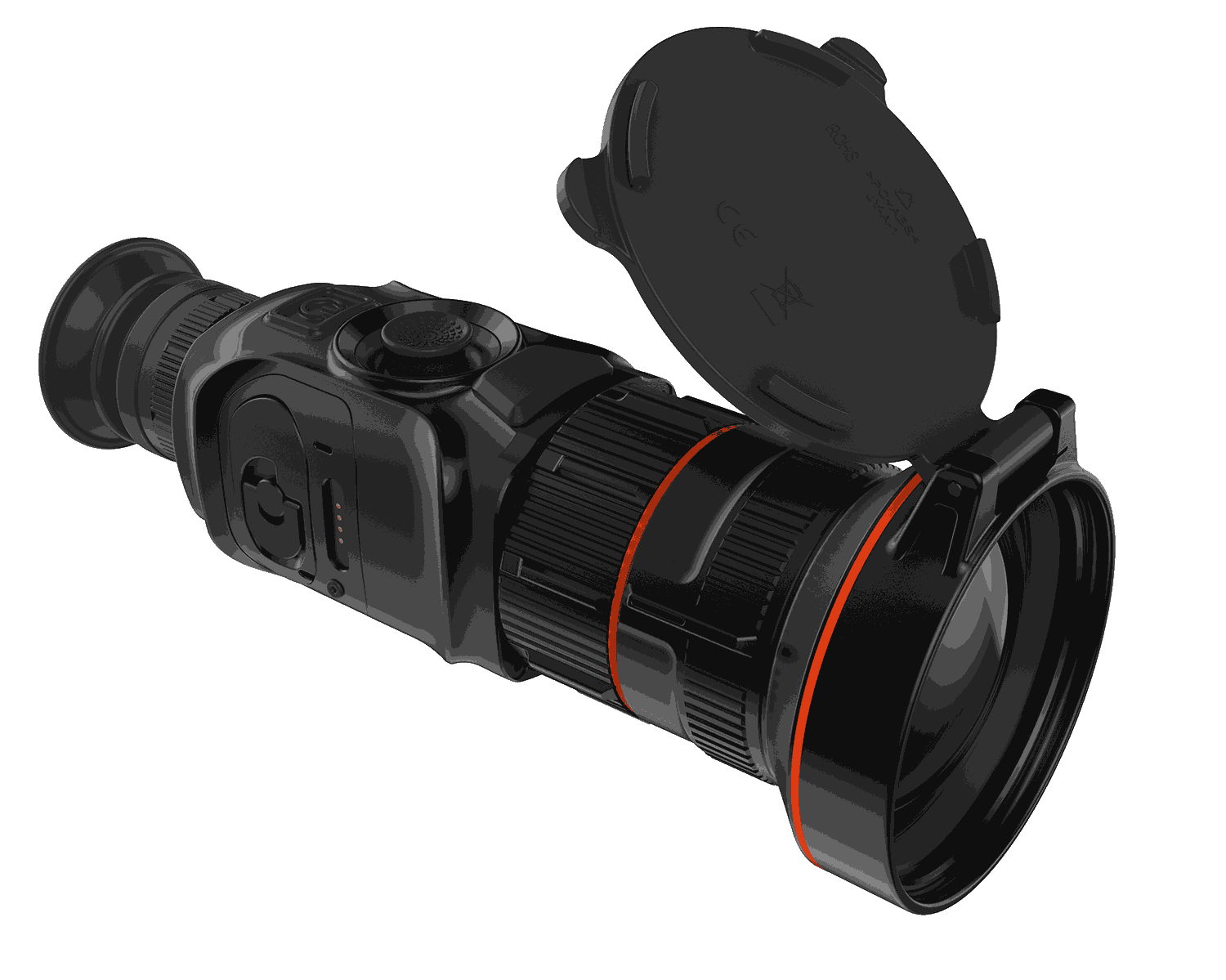

Dual-Field of View

NETD ≤25mK

Laser Rangefinder

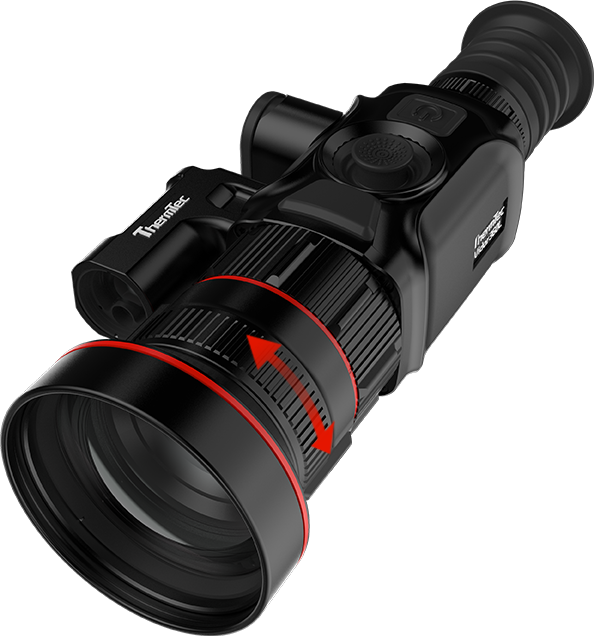

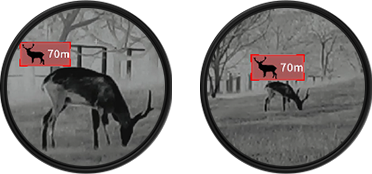

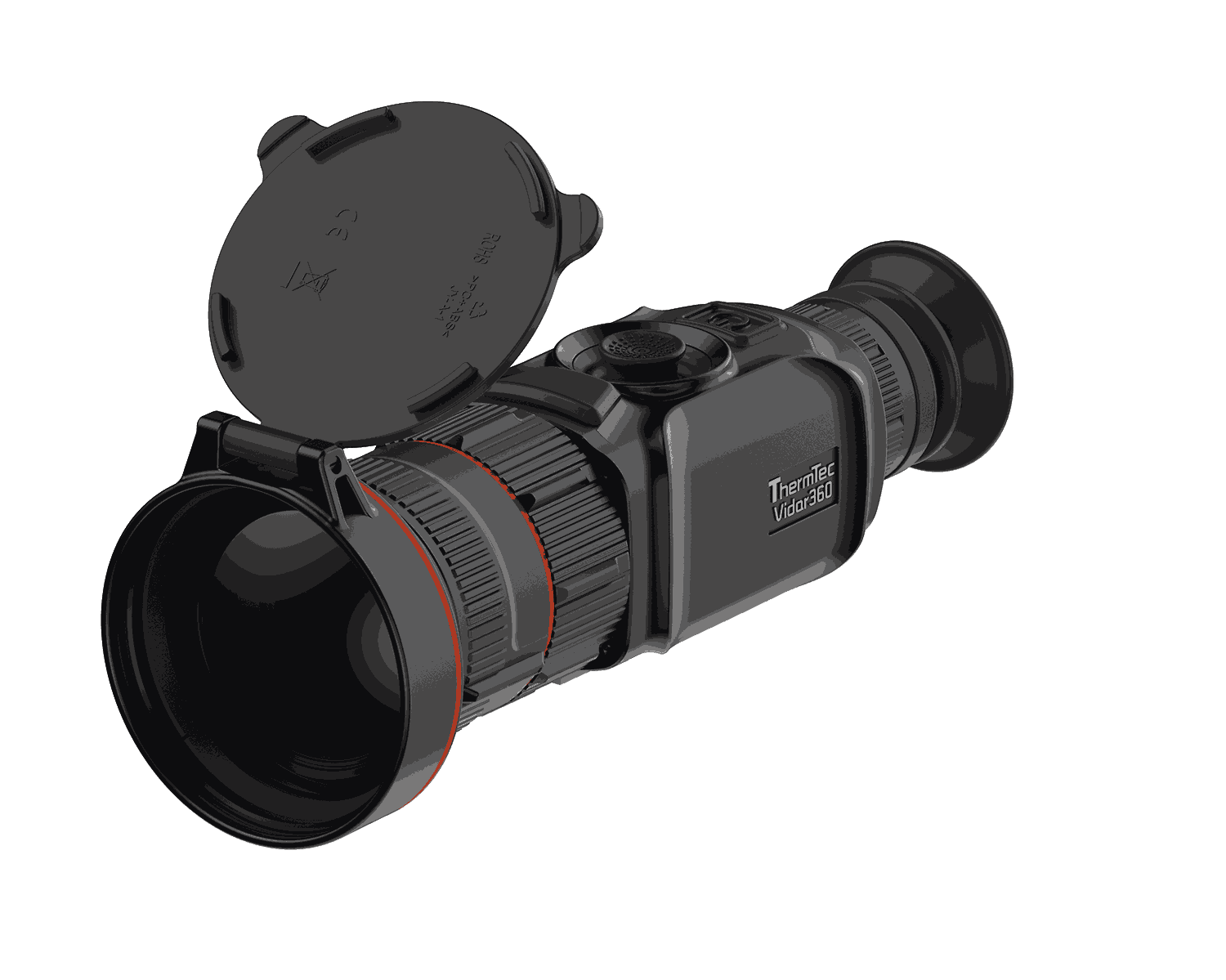

Dual-Field of View
A wide FOV with a focal length of 20mm can be used for detection;
A narrow FOV with a focal length of 60mm can be used for identification.

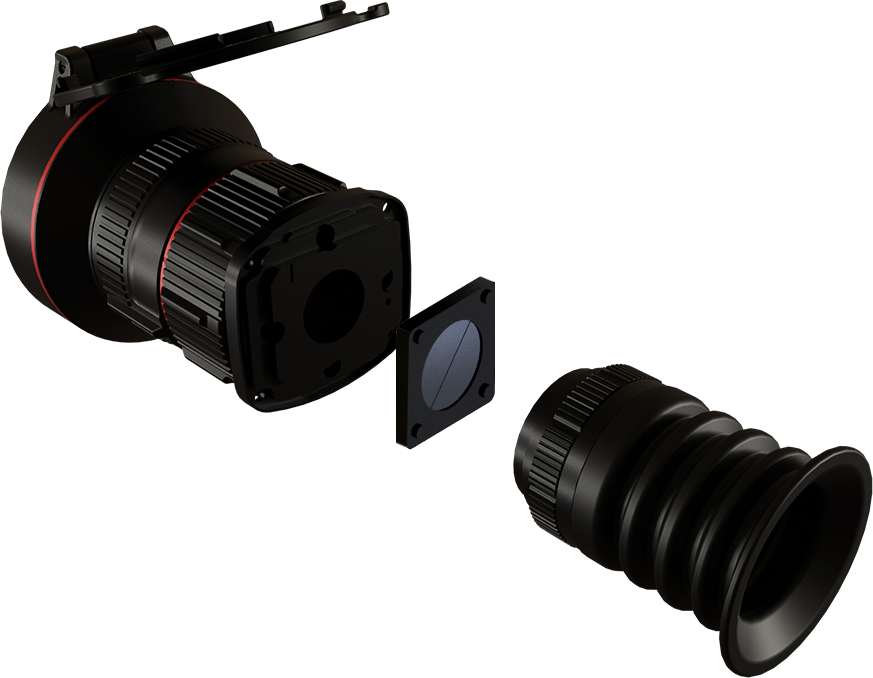

Highly Sensitive Detector
Thermal imaging sensor with NETD ≤25mK and 12µm detector ensures perfect detail recognition.
Non-Shutter Correction Technology
Invisible, background calibration means the screen will never freeze and there is no noisy shutter to alert your quarry.

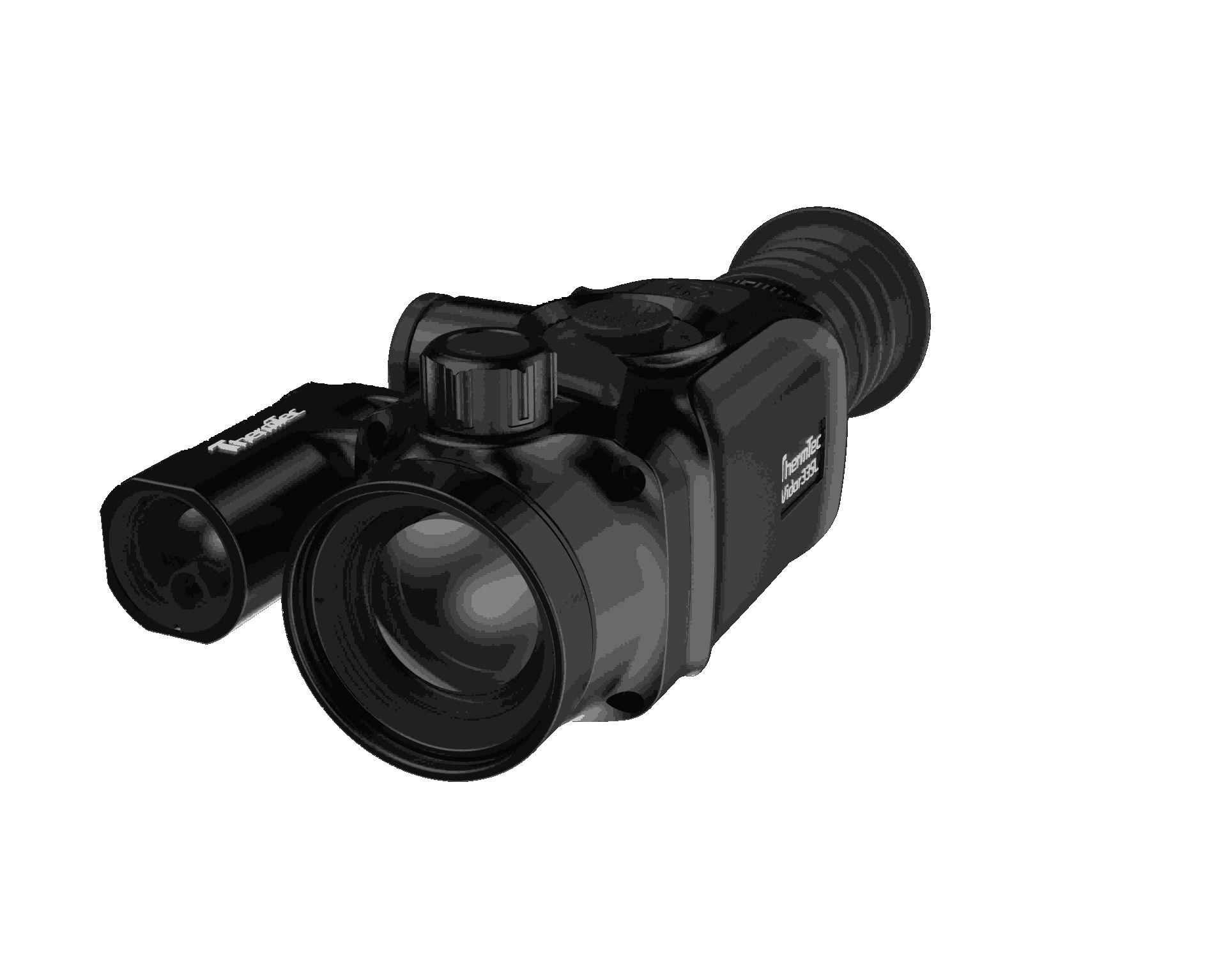

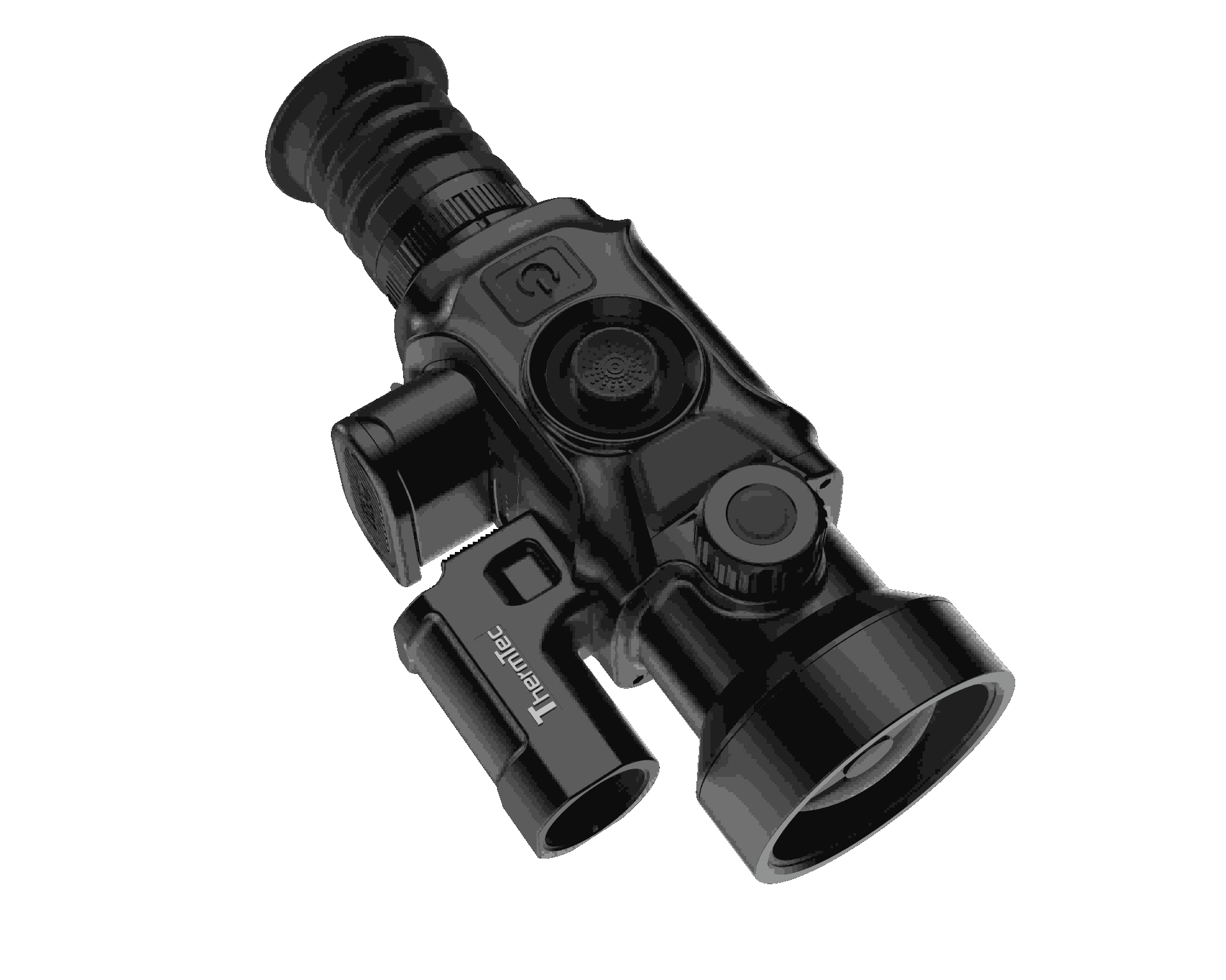

Laser Rangefinder with Ballistic Calculator
The laser rangefinder with ballistic calculator realize a long range targets measurement and an accurate shooting.
Automatic Zeroing
The automatic zeroing function makes it smart to adjust the reticle and take a shot.
Recoil Activated Video (RAV)
With RAV, it records videos of before, during, and after your shot, and captures the footage of your hunting moments.

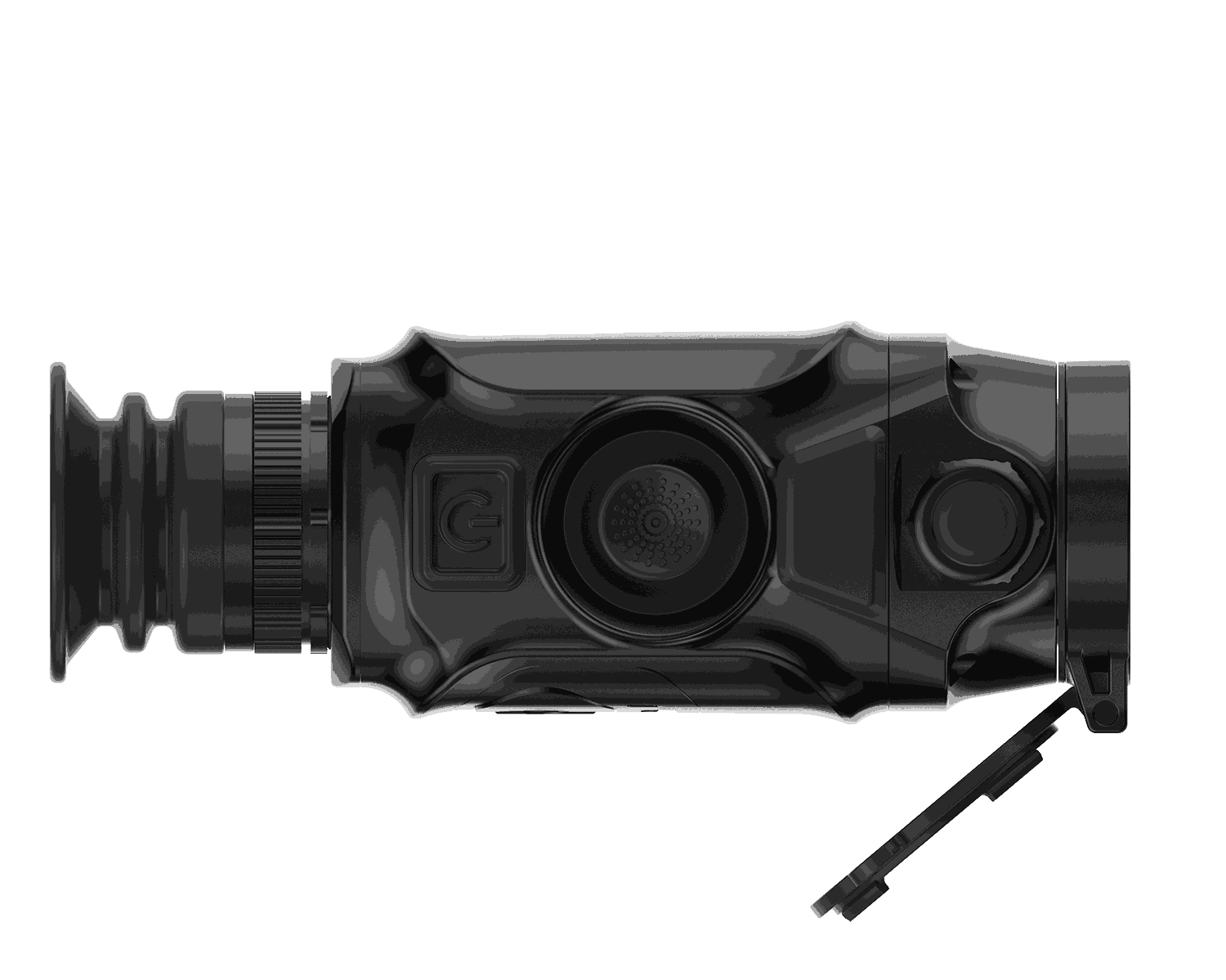

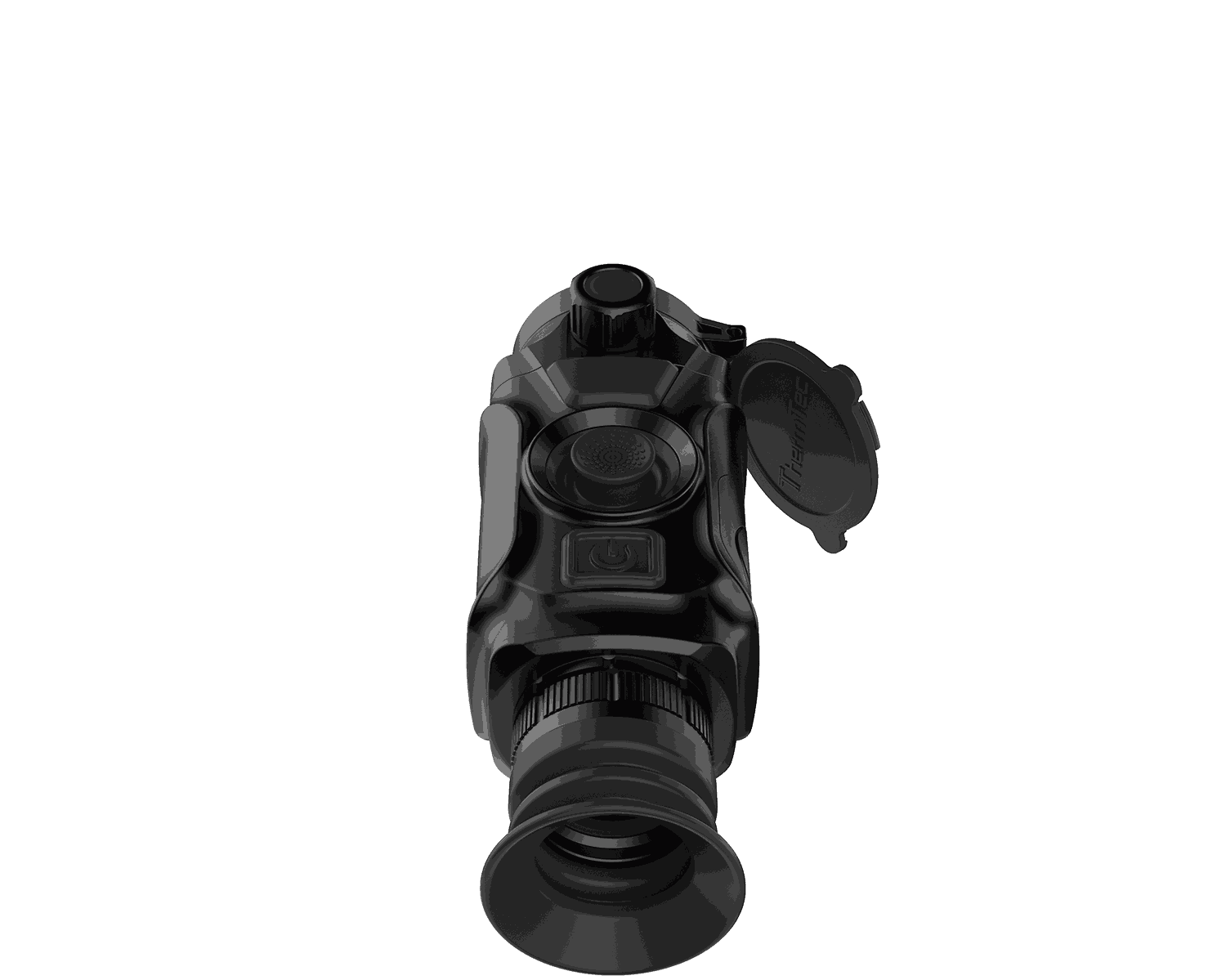

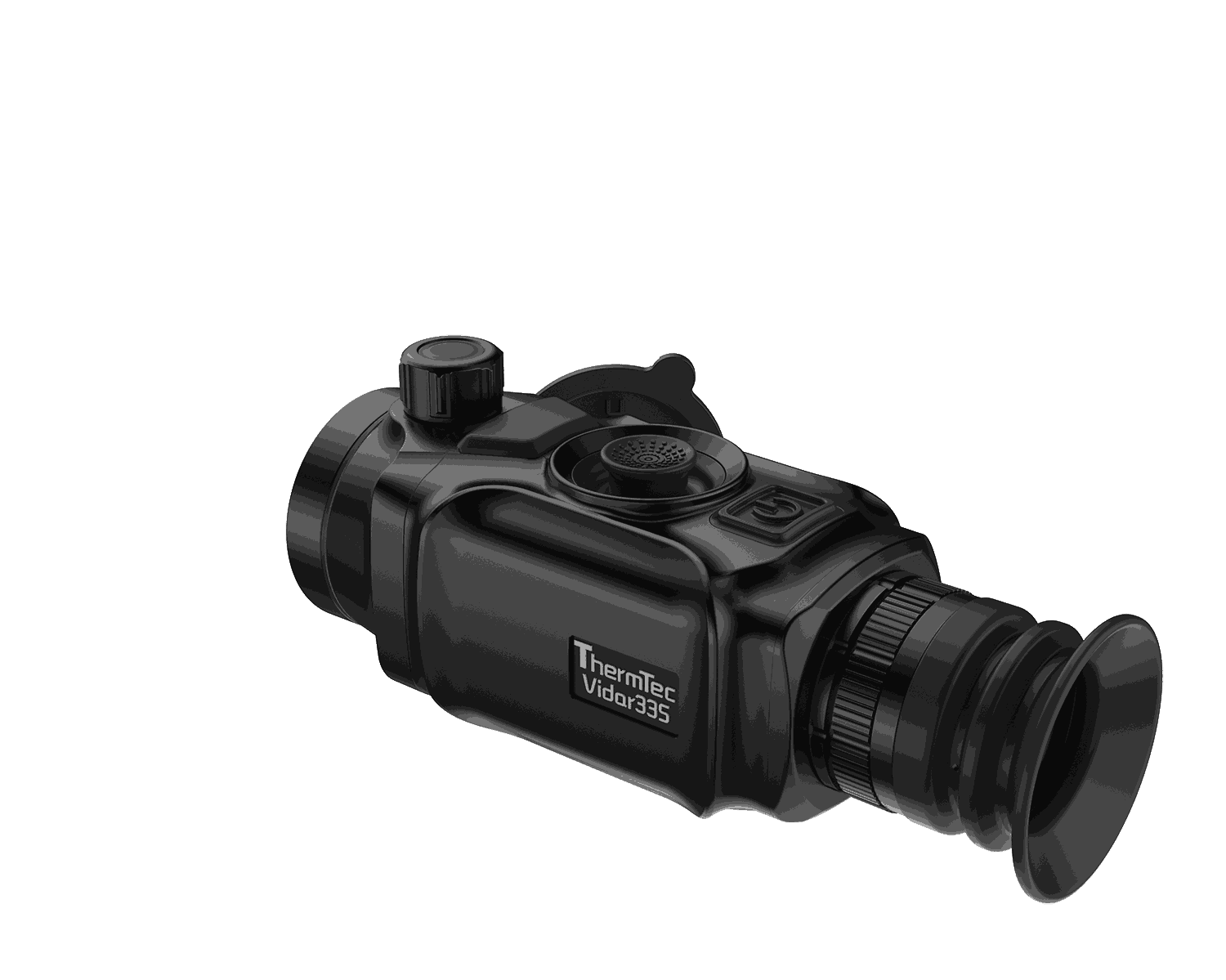

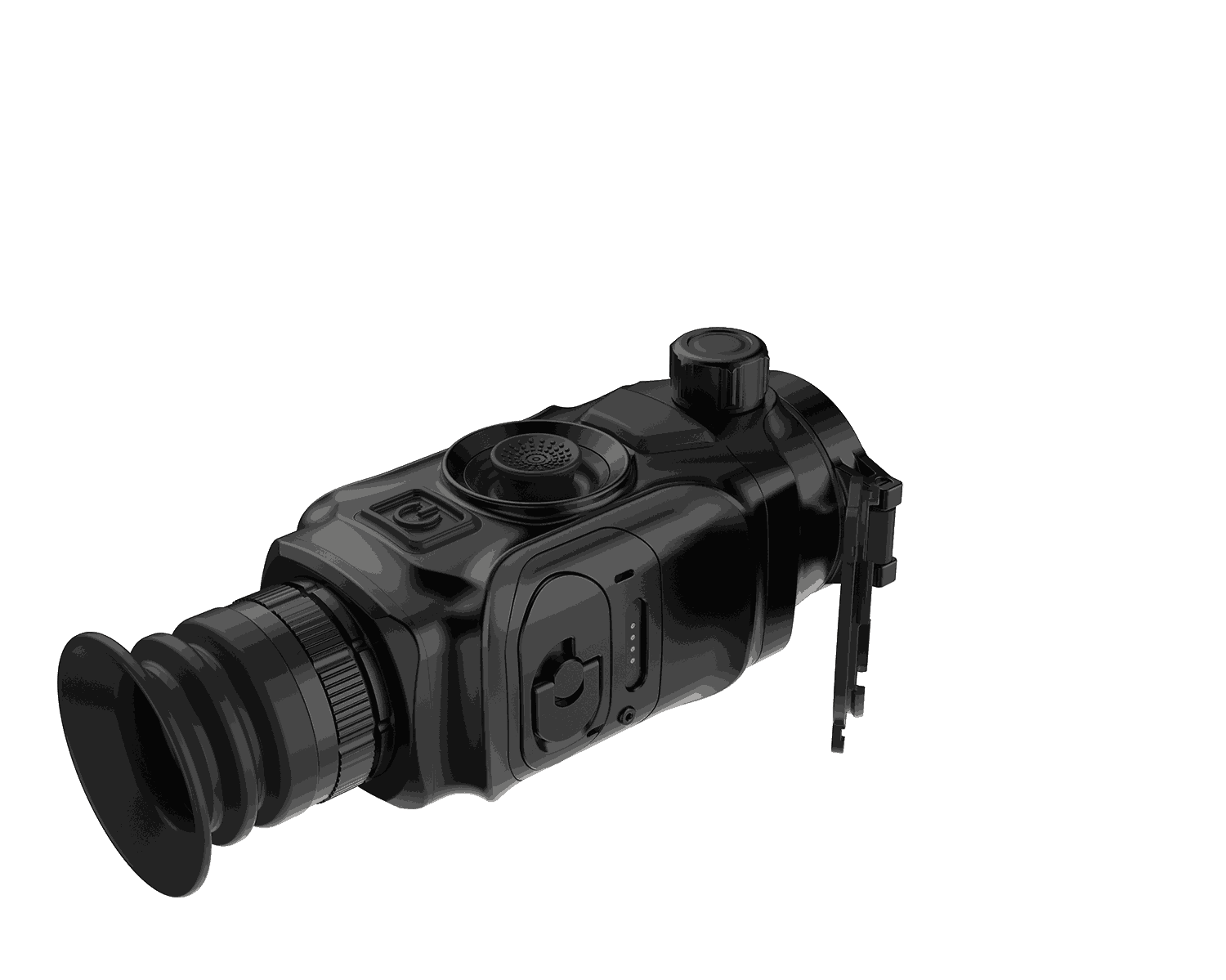

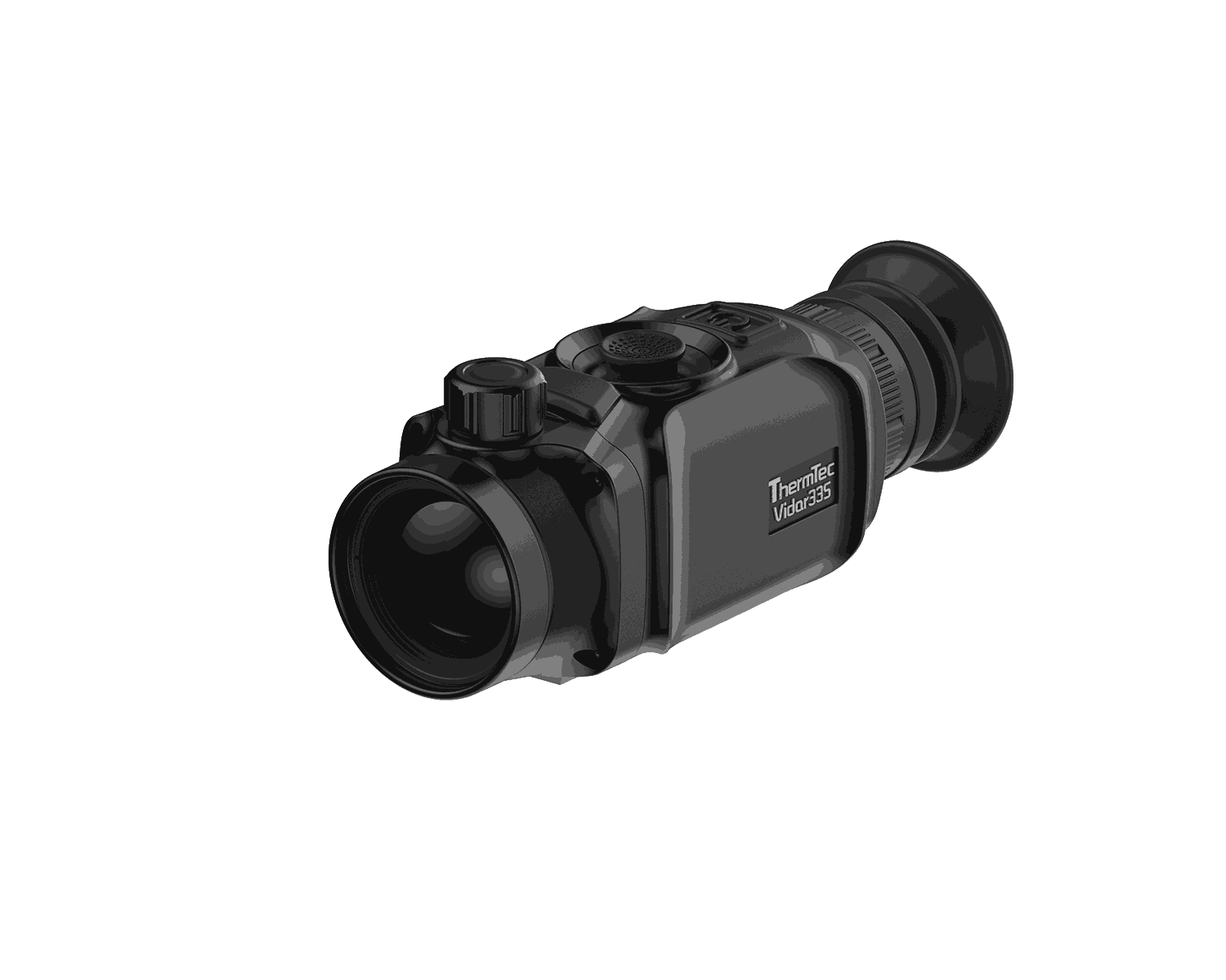

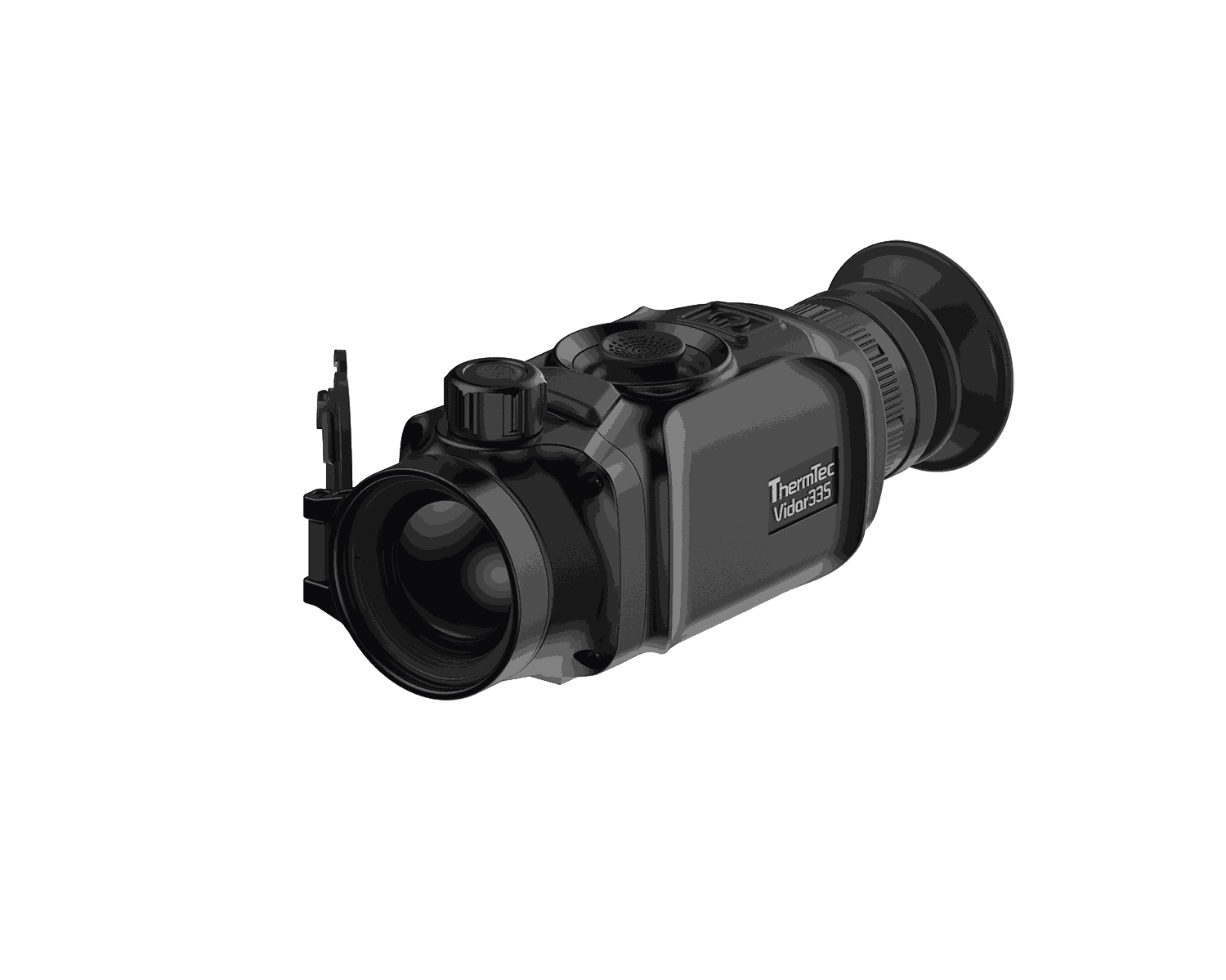

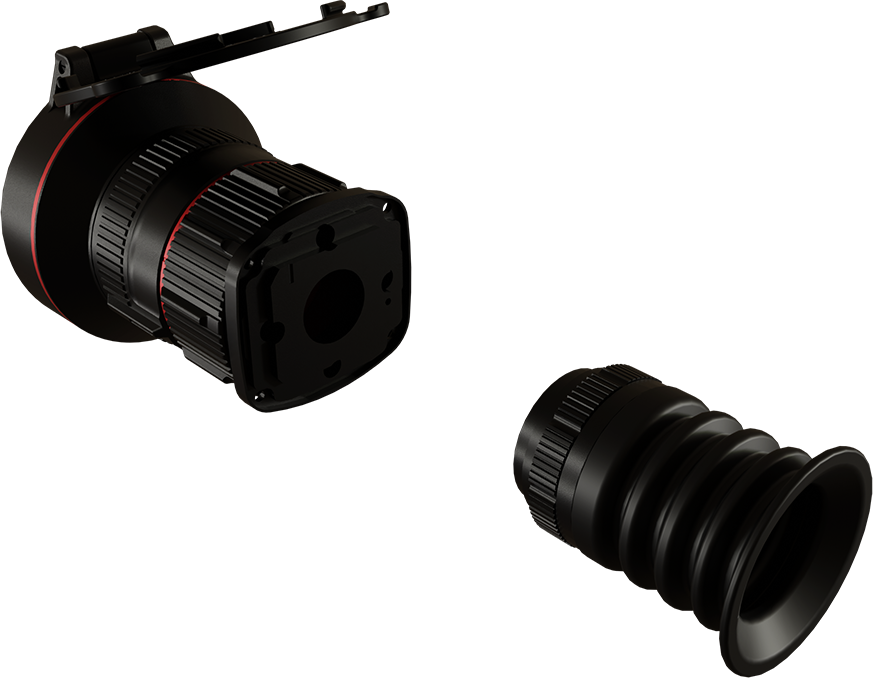

Lightweight & Compact Size
The compact dimension makes it a light and handy companion wherever you go.

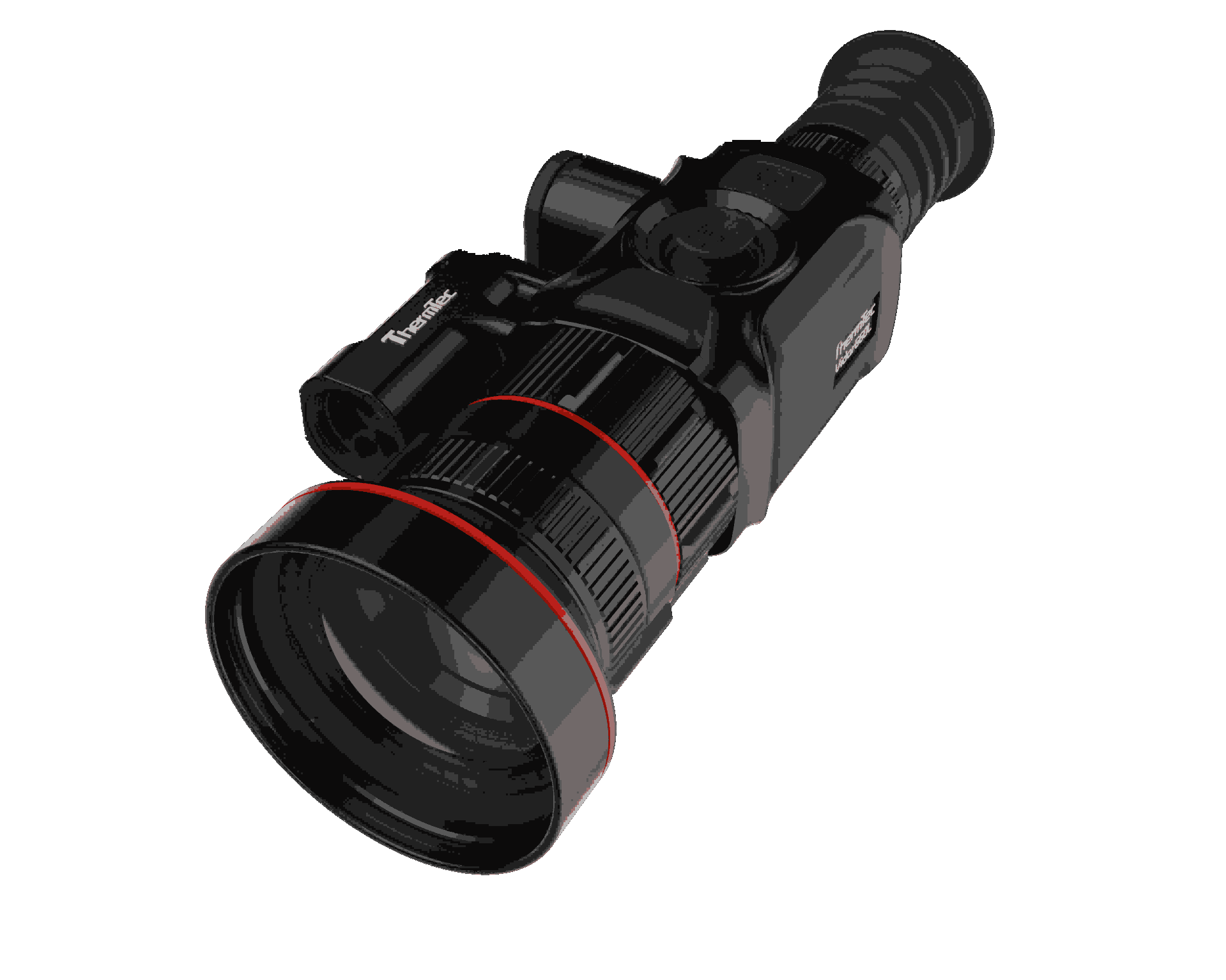

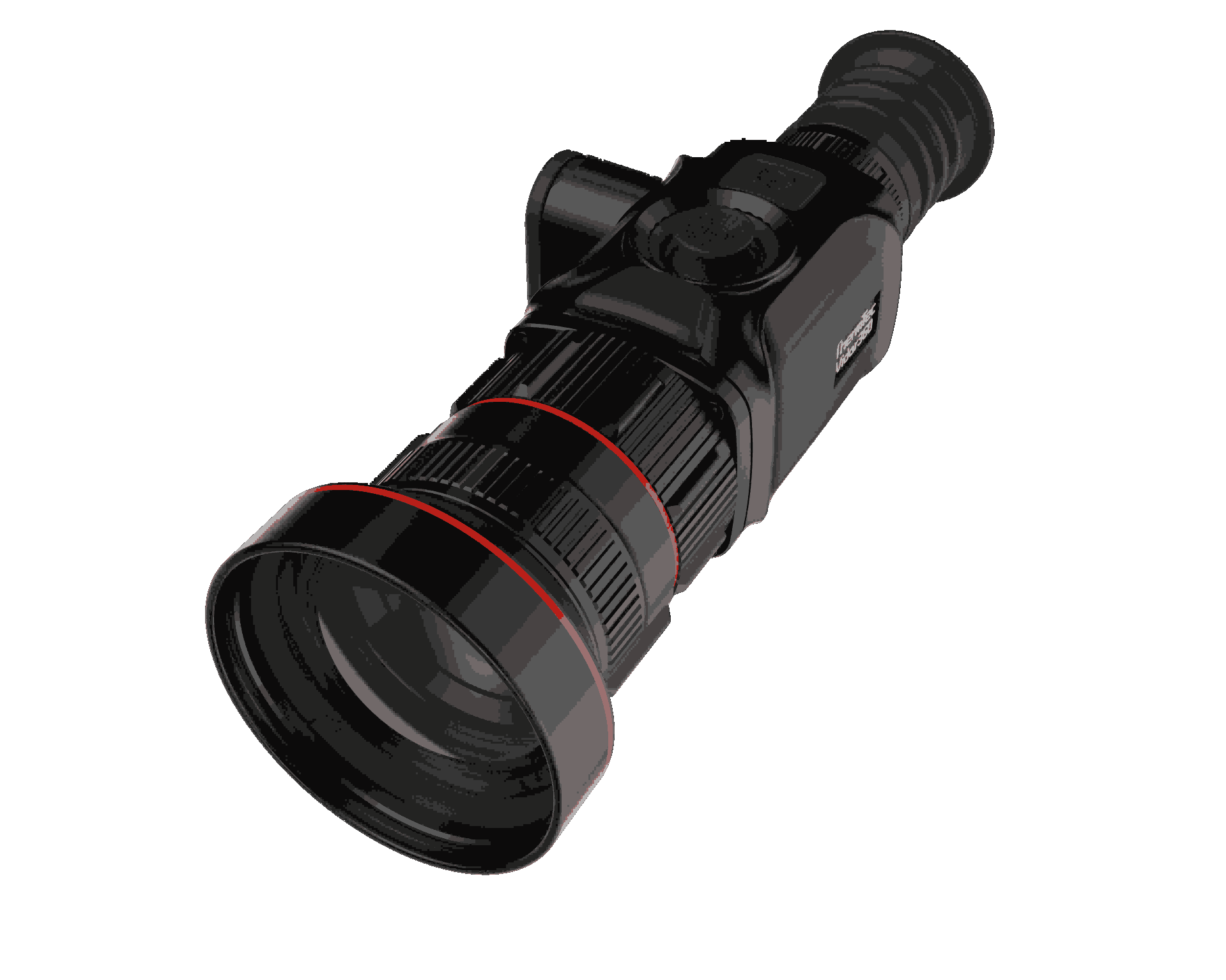

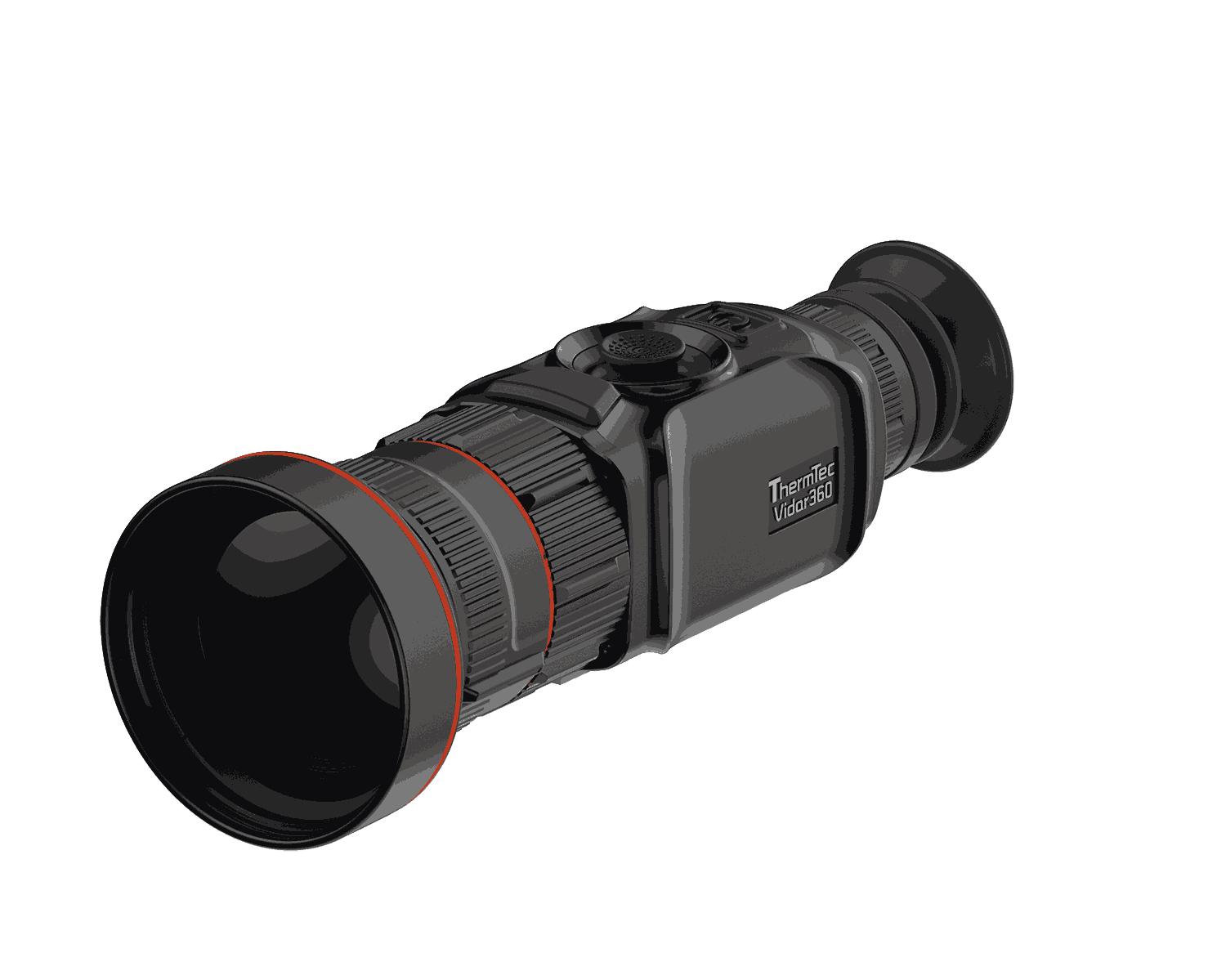

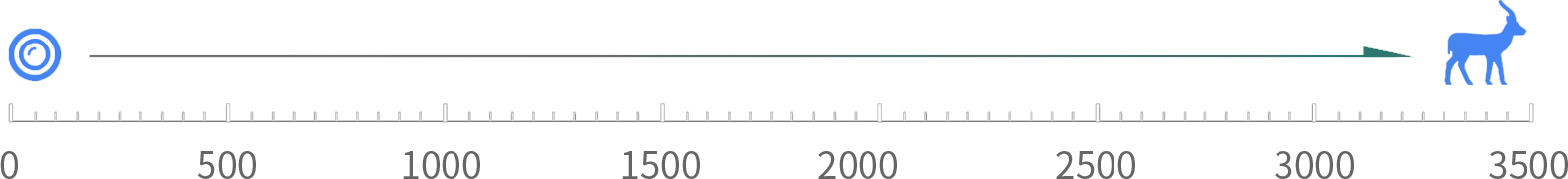

Long Detection Range
Maximum 60mm objective lens and advanced algorithm, boast exceptional detection range of up to 3,000 meters in complete darkness.
More Advantages
HD AMOLED Display
The 1024x768 HD AMOLED display offers improved color rendering, energy efficiency, high contrast, and rapid response, delivering clear and smooth visuals in dark environments.
High-Precision Zoom
1.0-5.0X HD zooming ensures excellent sharpness and the highest resolution of details from minimum to maximum magnification.
Long Battery Life
Up to 14 hours of active use. No more lost exciting moments due to drained batteries.

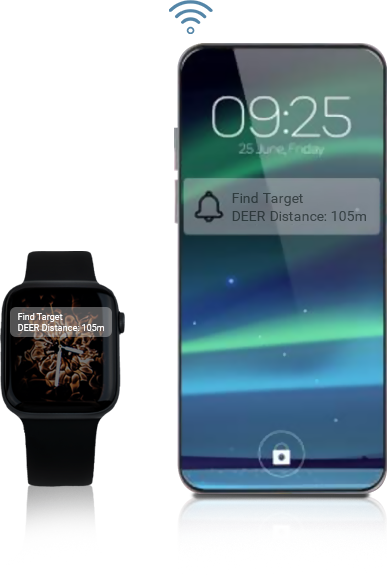

Real-time APP Notification
The “Smart Thermal” APP can instantly pop up a notification while the monocular detecting and identifying the target to avoid any distraction.

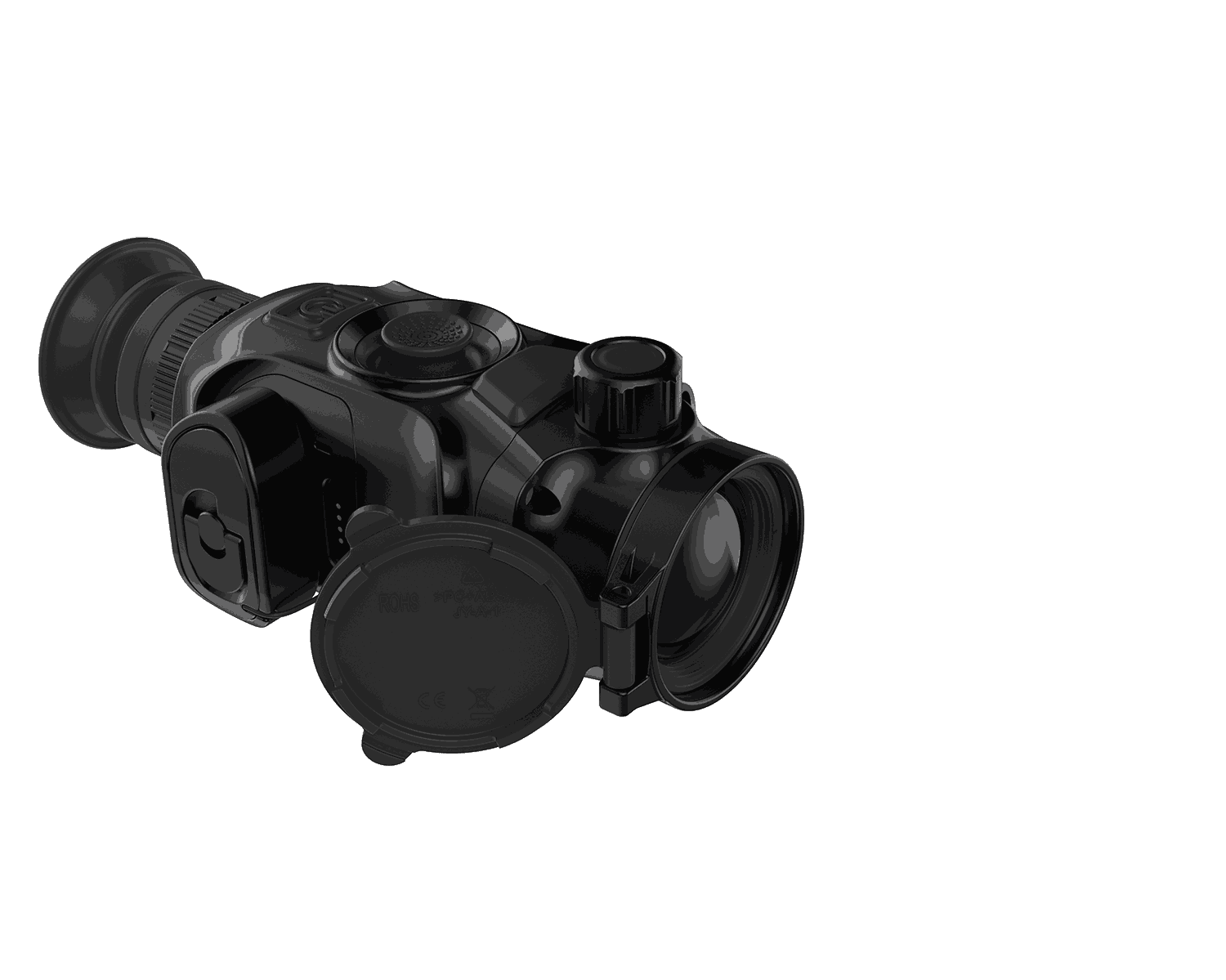

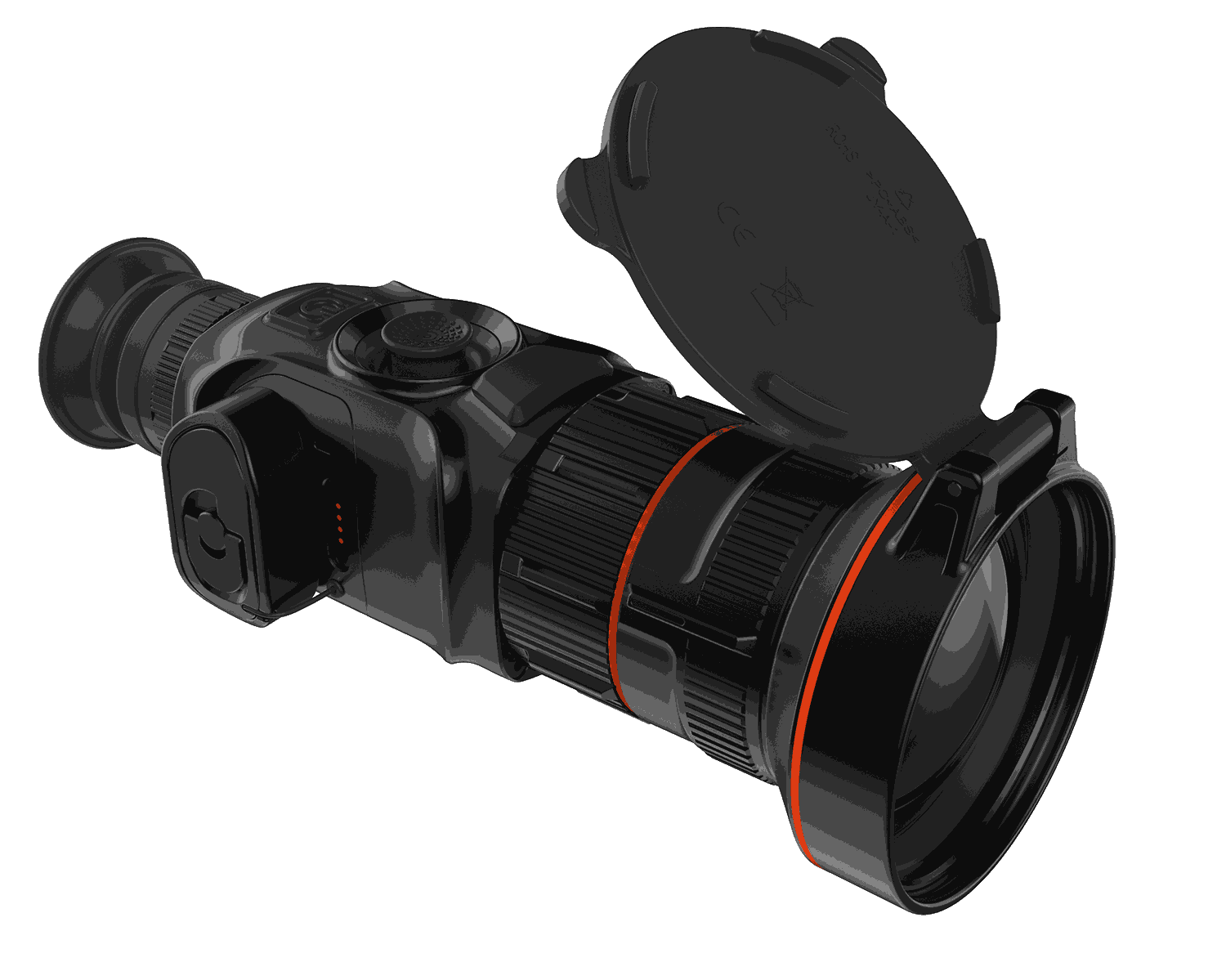

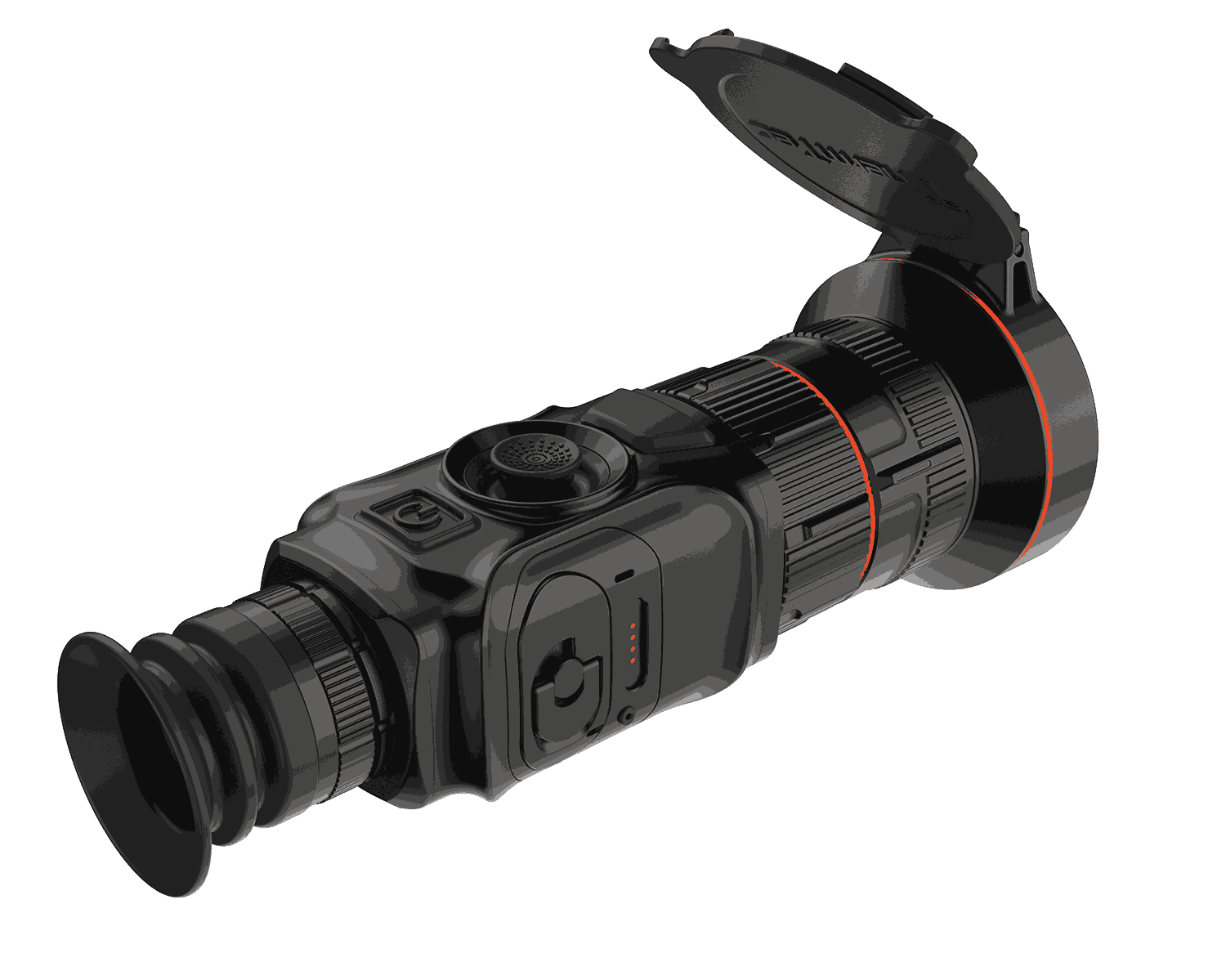

IP67 Waterproof
Provided with IP67-rated weatherproof performance, it is protected from heavy rainfall, snow, smoke, smog, or dust.
FAQs
Q1.What is the effect of the reticle polarity reversal? Can I turn it off?
Reticle polarity reverse helps find and lock small target. It can be turned off if your device with latest version upgraded.
Q2.Whats the effect of RAV? How can I set?
RAV stands for recoil activation video,which ensures never miss the wonderful shooting moments, its actually 20s clip before and after shooting. If your device is equipped with a silencer and the recoil is low, you need to modify the sensitivity VPT, the default recommended setting is 100
Q3.How can I use ballistic calculator?
1.finish the manual zeroing
2.select corresponding profile and go to option of ballistic calculator to set all of the parameters
3.enable the ballistic calculator
4.manually measure the distance and there is a mark “^” over there , It will change with the distance, and the ranging will be changed from continuous ranging to single ranging, use the new ^ for aiming!
Q4.How to turn on laser ranging? When does laser ranging automatically switch to single ranging?
After exiting the main menu, swipe left through the joystick to activate the continuous laser ranging.
When trajectory calculation is turned on, the laser ranging is automatically switched to a single ranging.
Q5.Does dual field of view Vidar require separate zeroing?
Yes
Q6.How to switch the field of view correctly to ensure that the dual field of view image is clear?
1.The field of view switch needs to be switched to the limit position!
2.Adjust the larger lens(60mm) image clear first!
Q7.Why does the reticle shift because of zoom in?
Reticle has 2 modes of Center/Move, when you set it as Center mode, the image will zoom in automatically while finishing the zeroing
