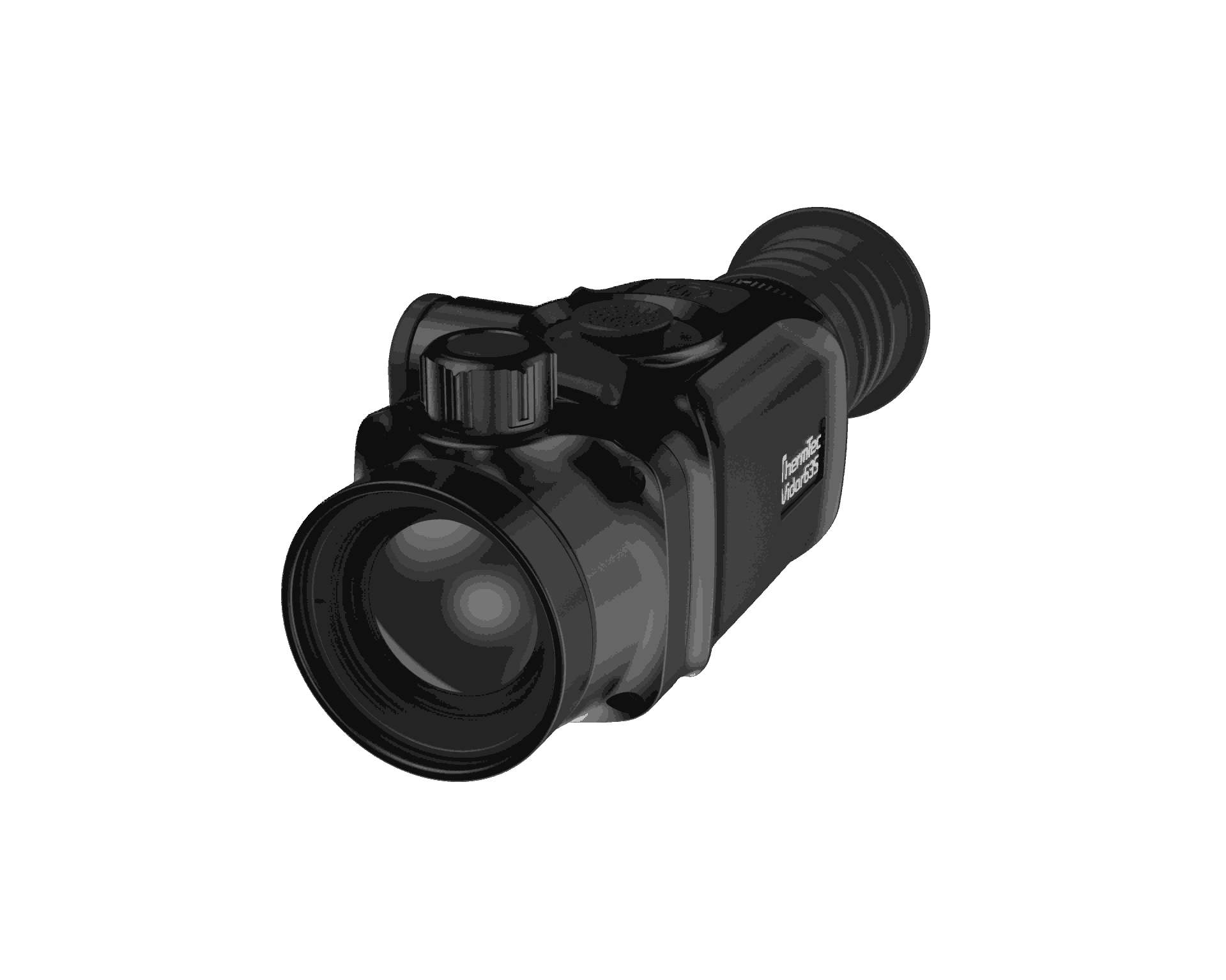

Thermal Imaging Sight
Vidar Series
Dual-Field of View
12µm Detector
1024 OLED Display
NETD ≤25mK

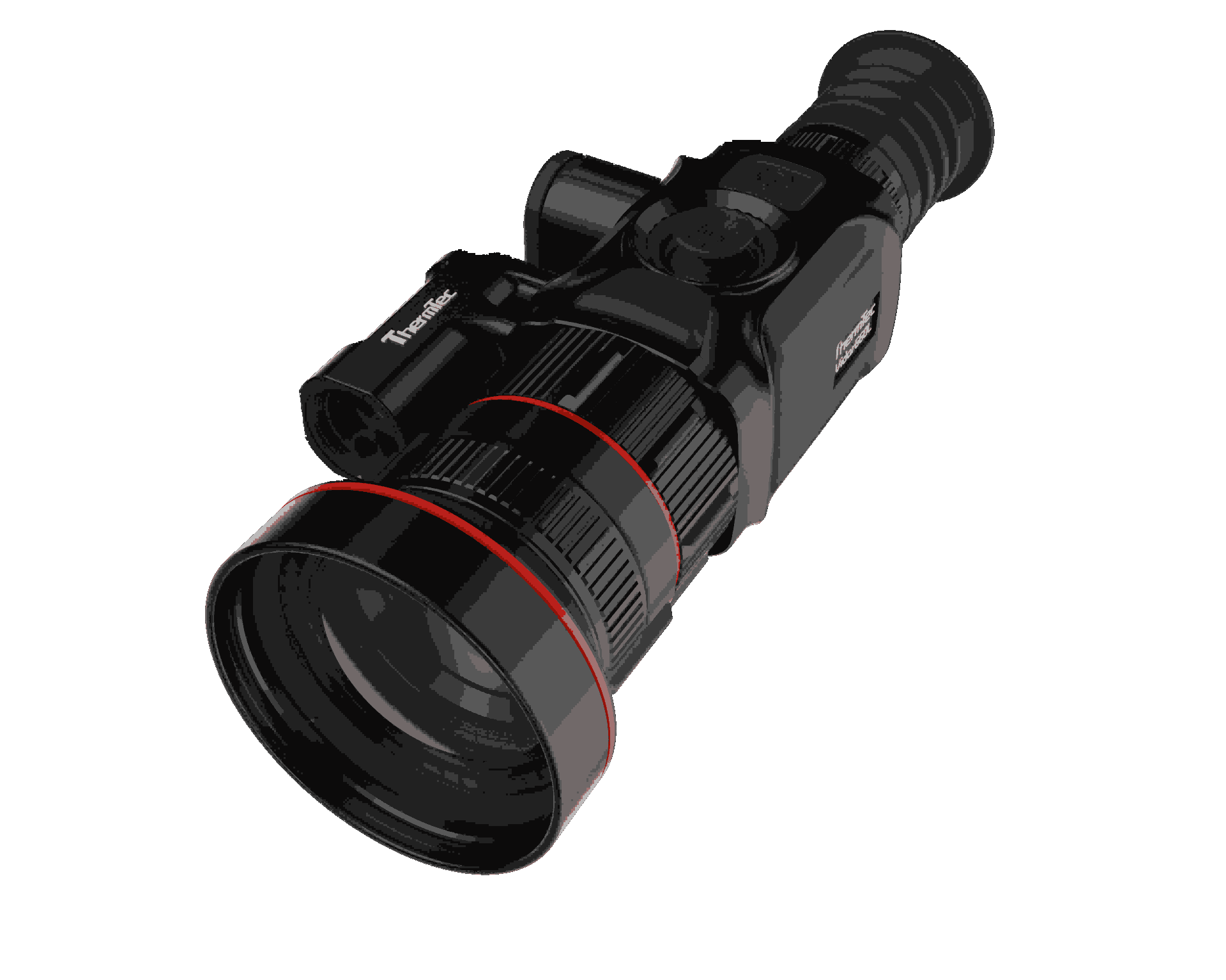

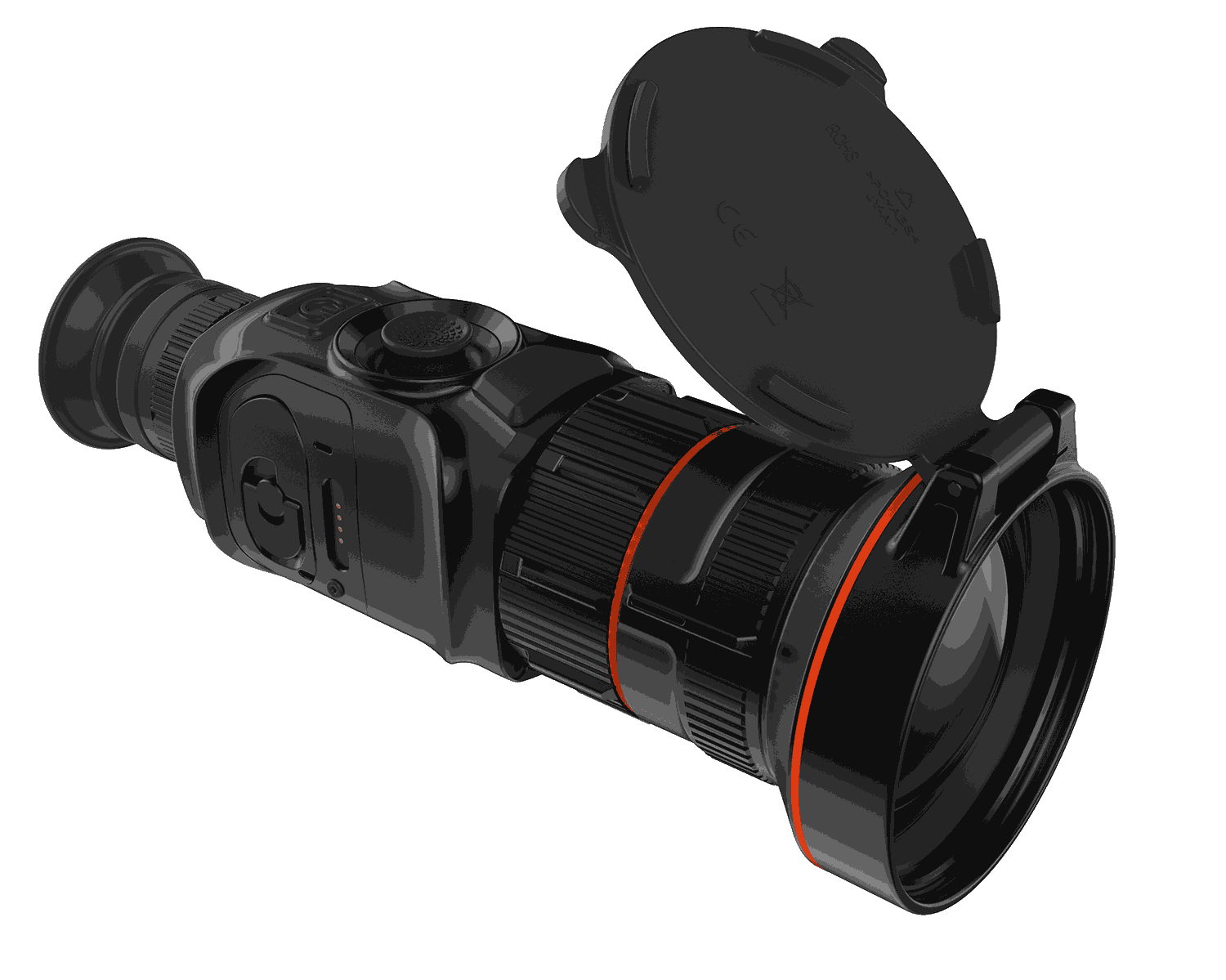

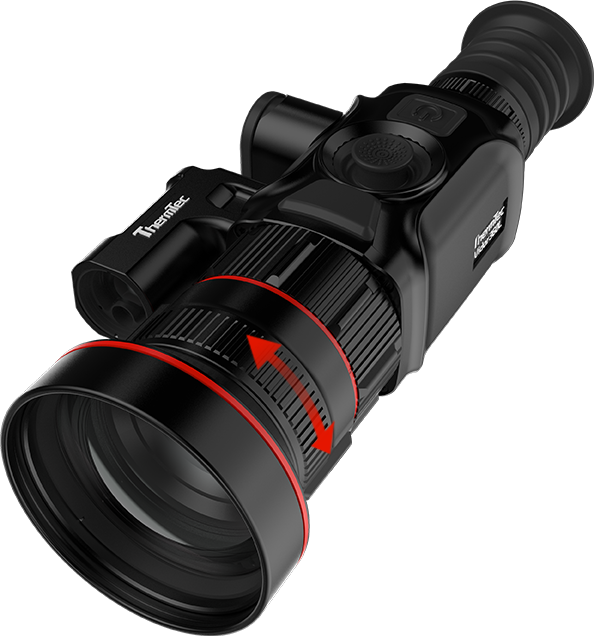

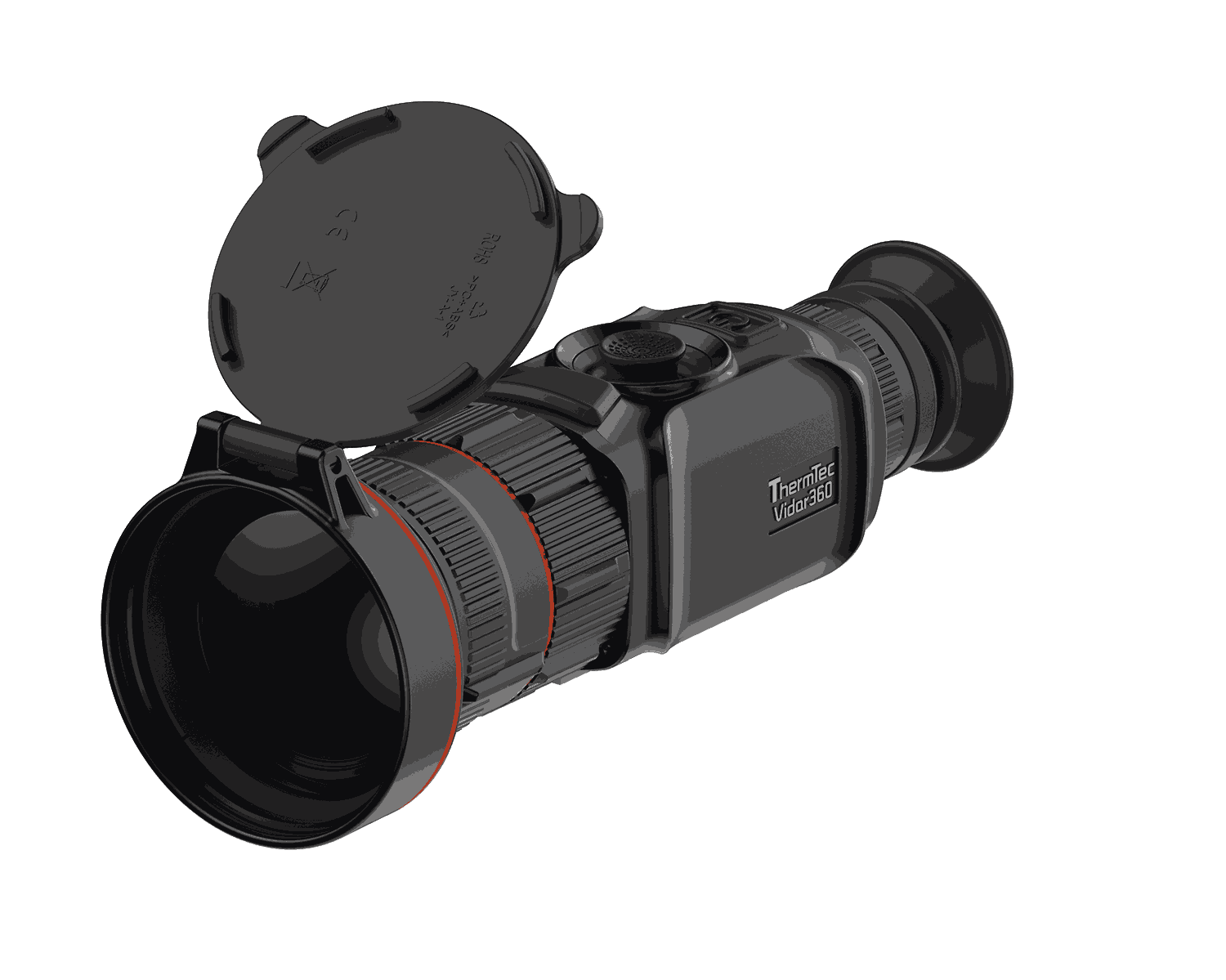

Dual Field of View
A wide FOV with a focal length of 20mm can be used for detection; A narrow FOV with a focal length of 60mm can be used for identification.

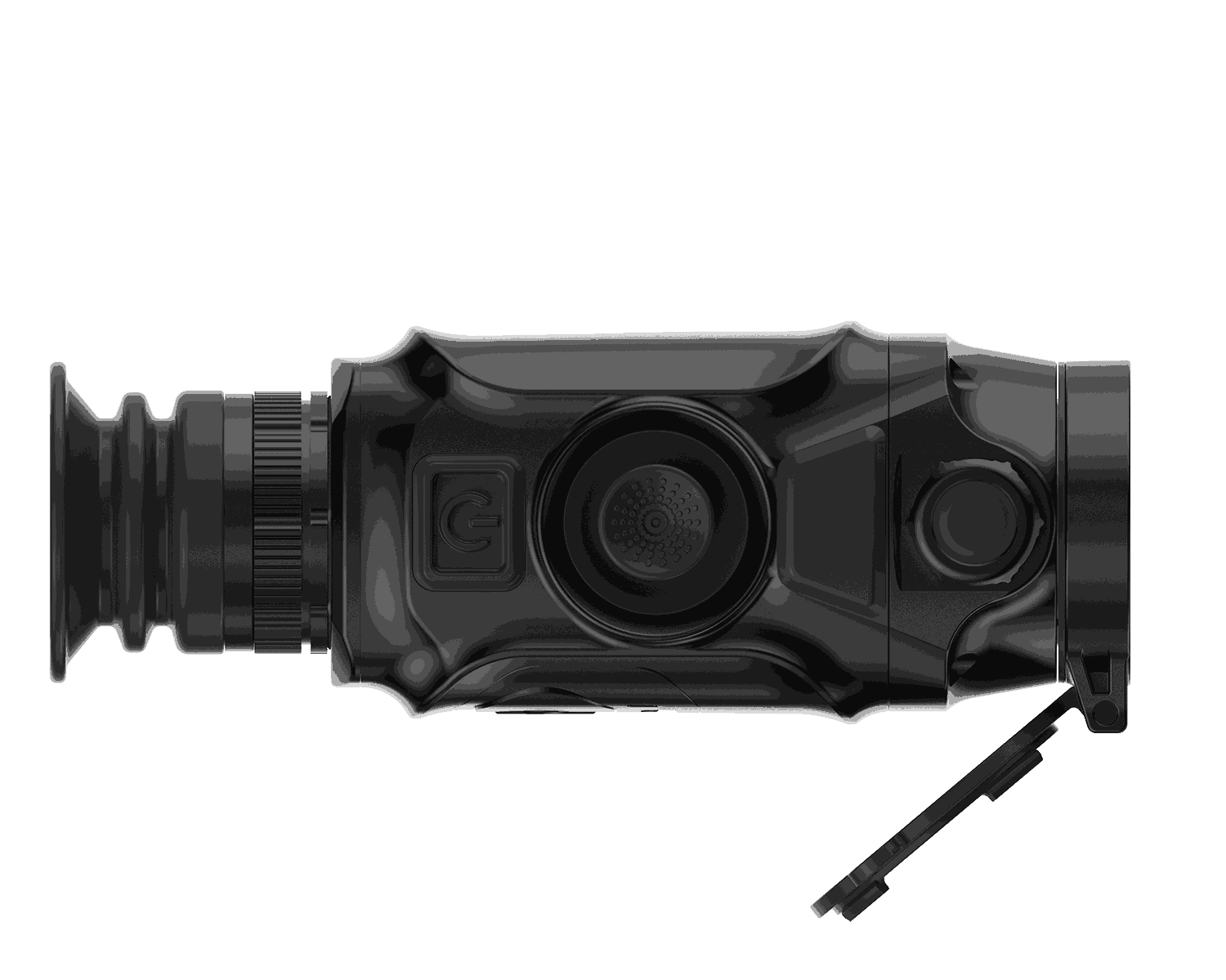

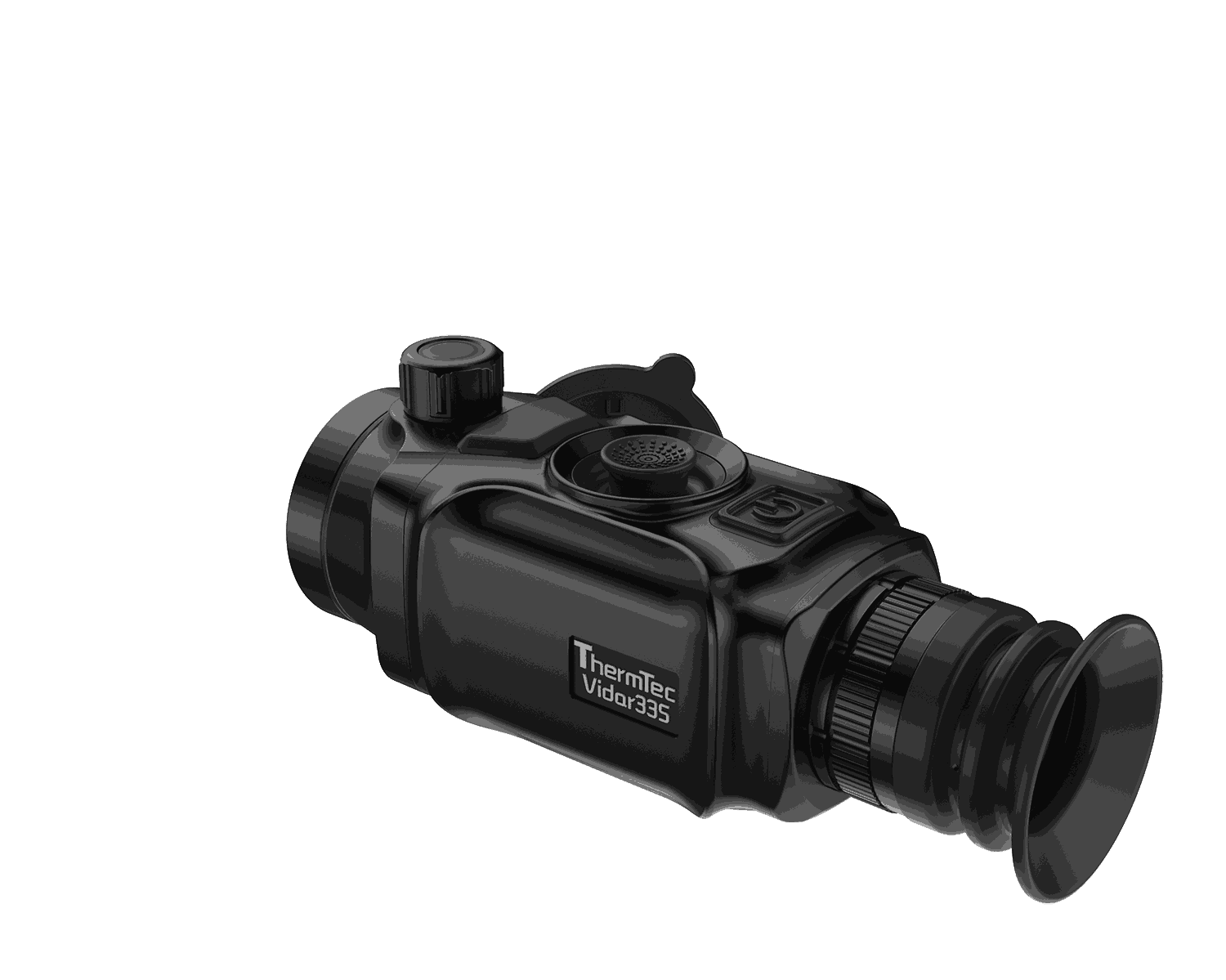

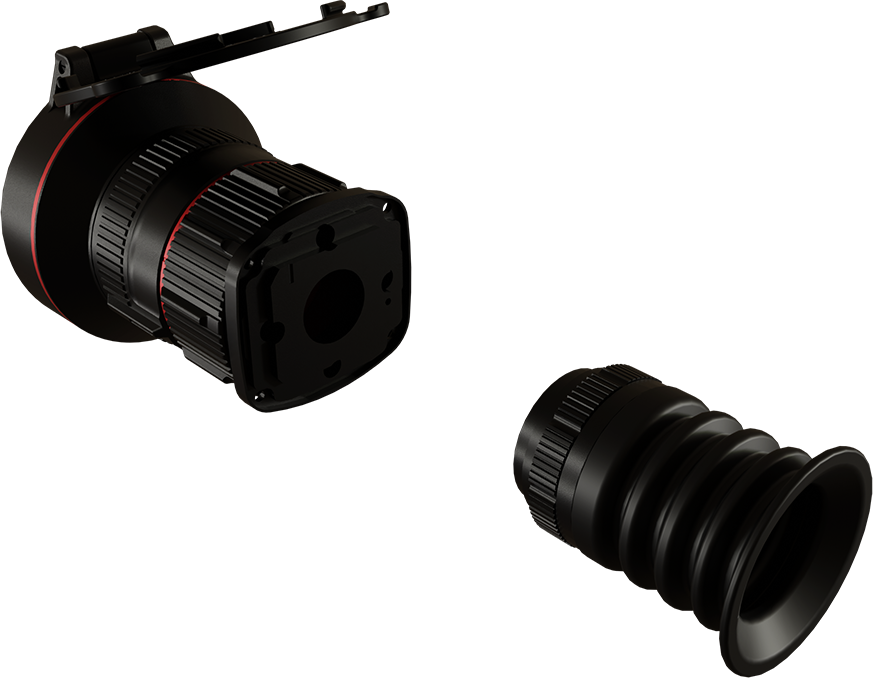

Compact & Light
Lightweight and extremely compact, the Vidar is the perfect companion on any hunting or observational trip.

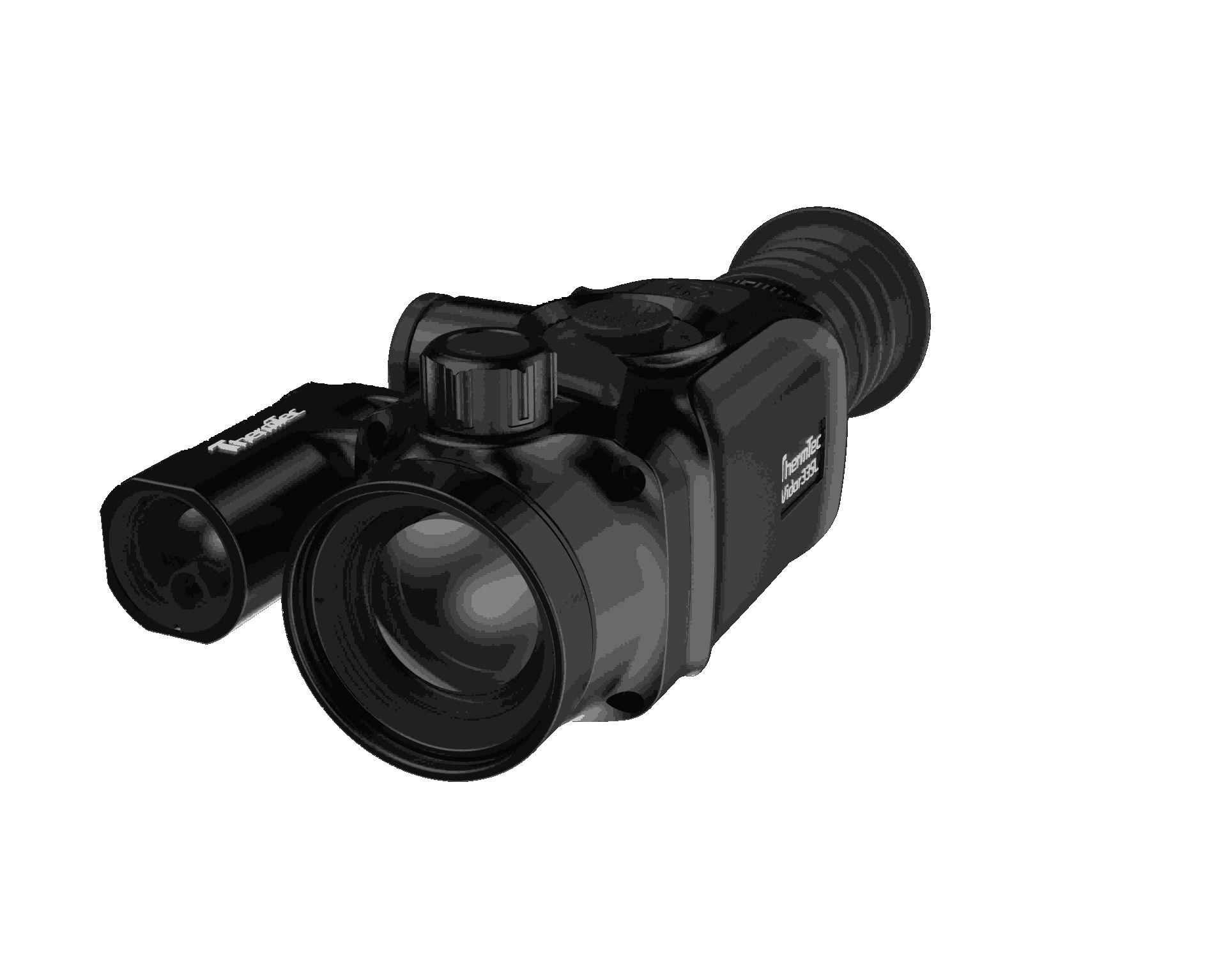

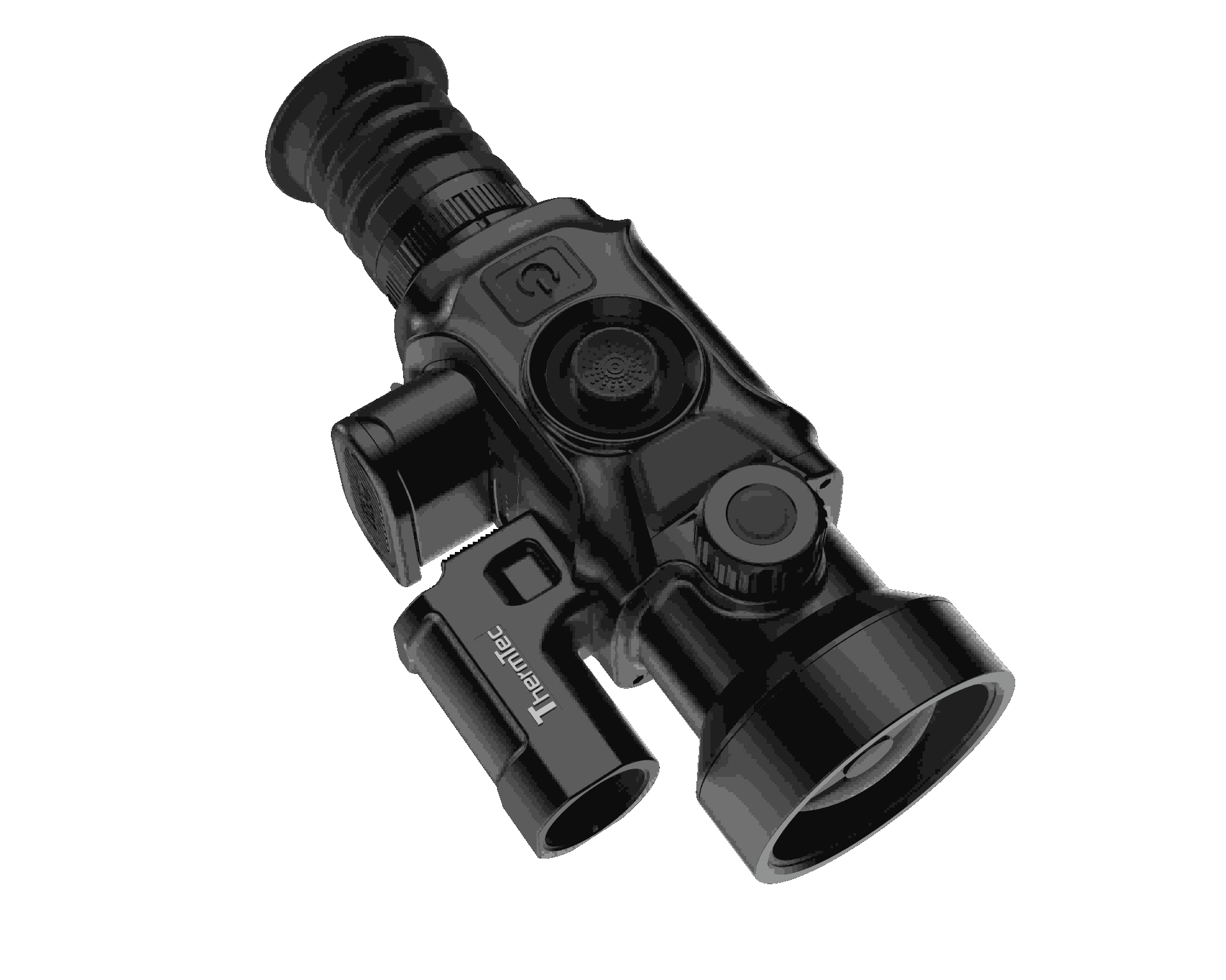

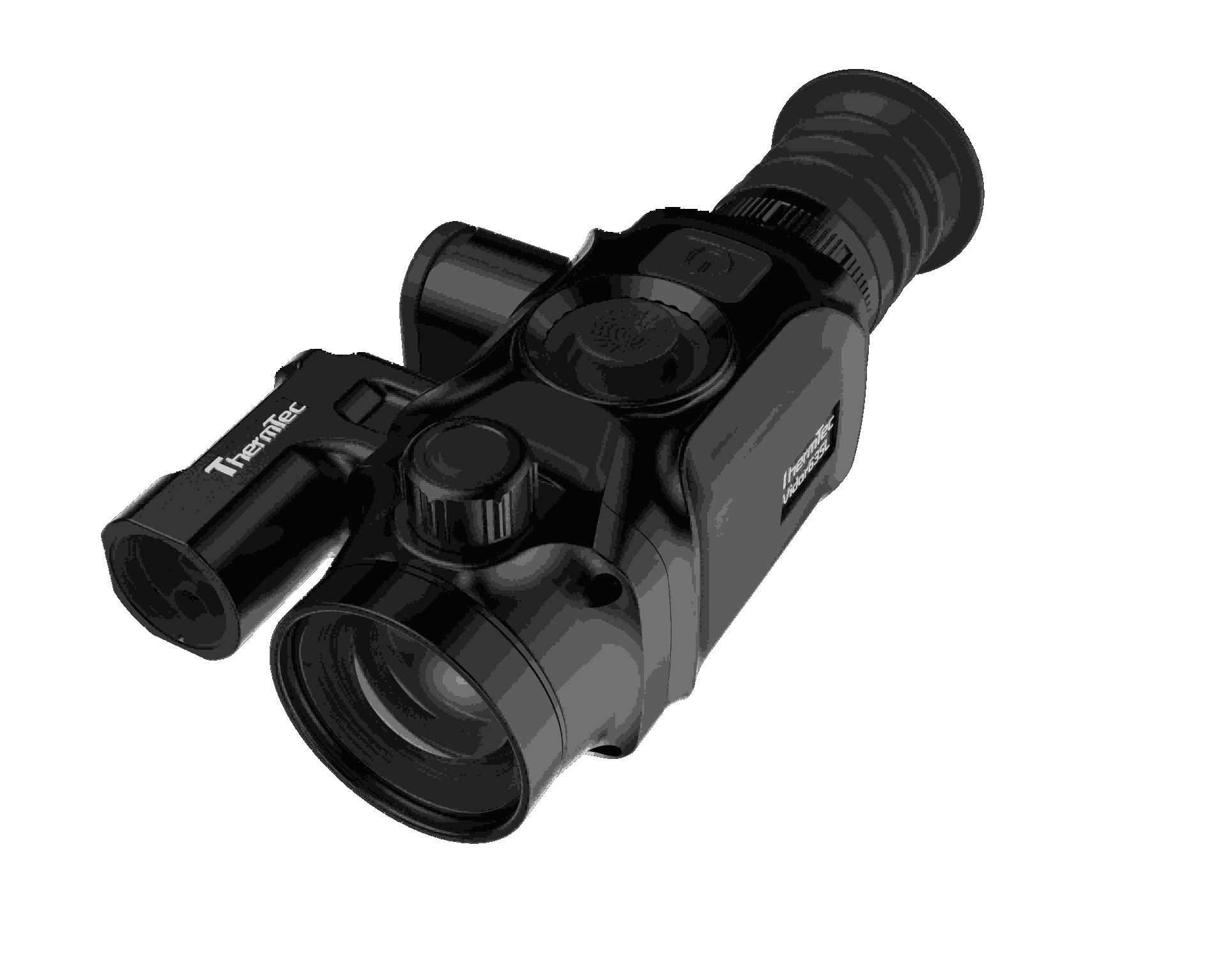

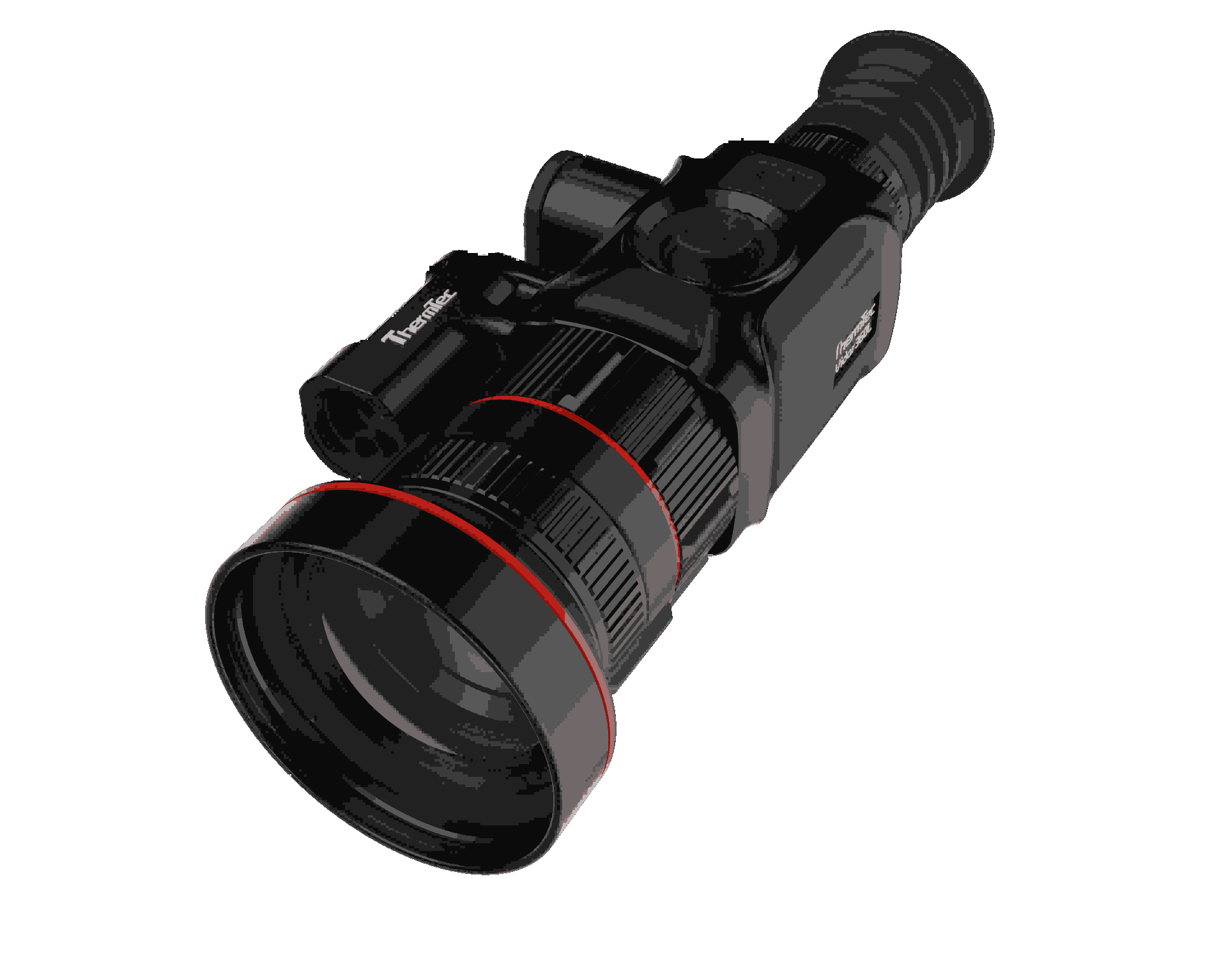

Laser Rangefinder + Ballistic Calculator
The Laser rangefinder with ballistic calculator realize a long range targets detection and an accurate shooting. L-models include a 1,200m laser rangefinder with ballistic calculator for perfect shot placement at any range.

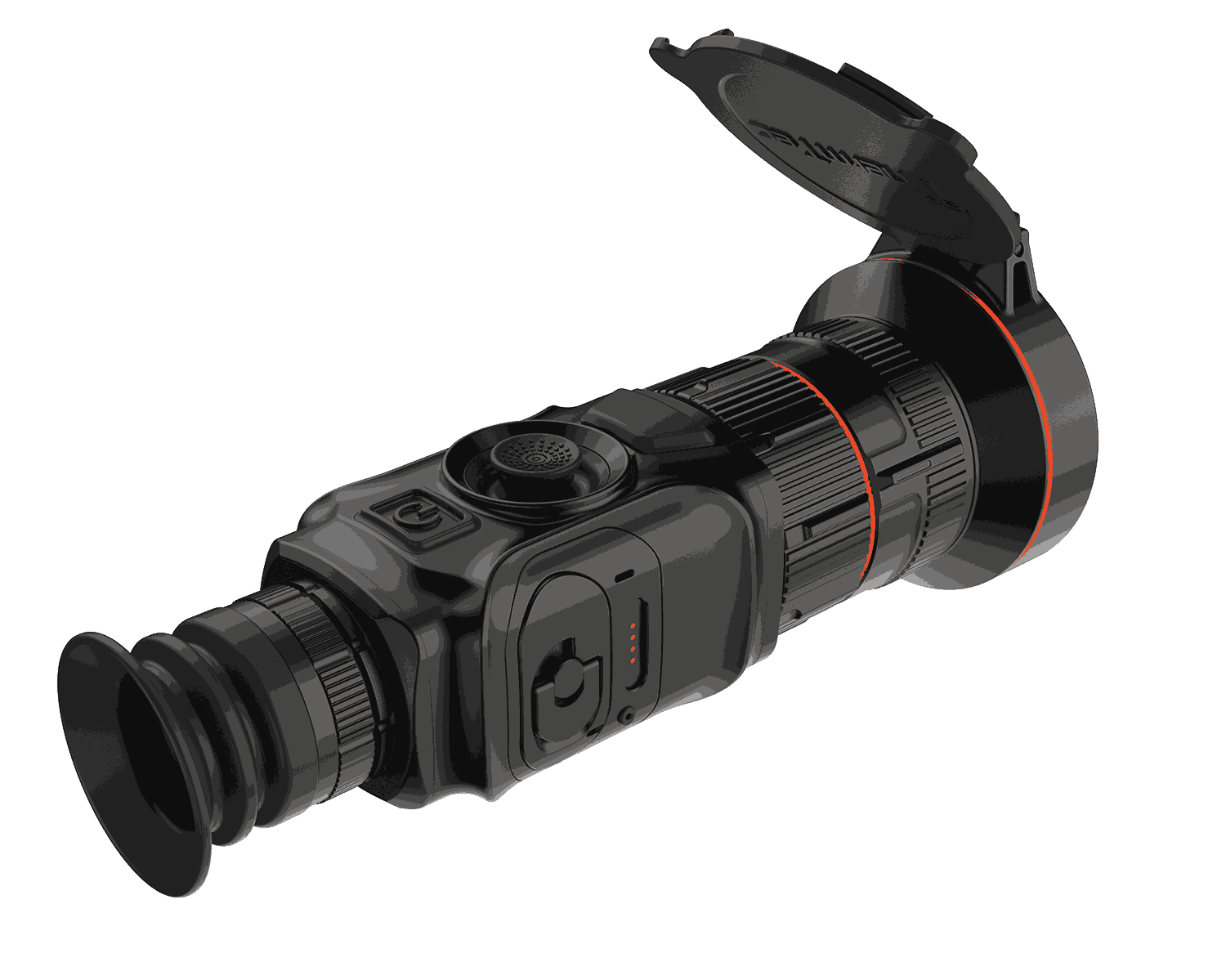

Non-Shutter Correction Technology
Invisible, background calibration means the screen will never freeze and there is no noisy shutter to alert your quarry.
Automatic Zeroing
The unique automatic zeroing function is the fastest,
simplest zeroing system there is;
just take a shot and let the Vidar set zero for you.
First Shot
Adjusted and
Got the Aim

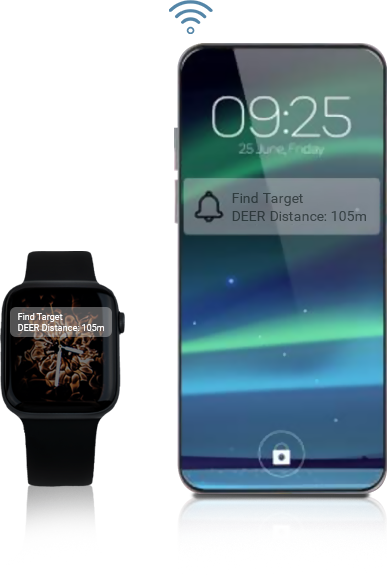

Real-time APP Notification
The “Smart Thermal” APP would instantly pop up a notification while
detecting the target to avoid any distraction.
Long Detection Range Maximum 60mm objective lens and advanced algorithm, boast exceptional detection range of up to 6667 meters in complete darkness.
More Advantages
High Thermal Sensitivity
The Vidar’s NETD ≤25mK sensor captures the smallest detail even the target and background are almost at the same temperature.

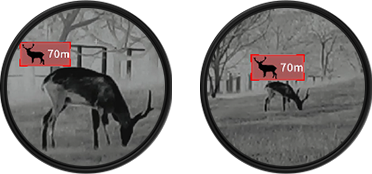

Automatic Object Detection
The Vidar can detect and identify the target while an object entering its field of view to avoid any miss.

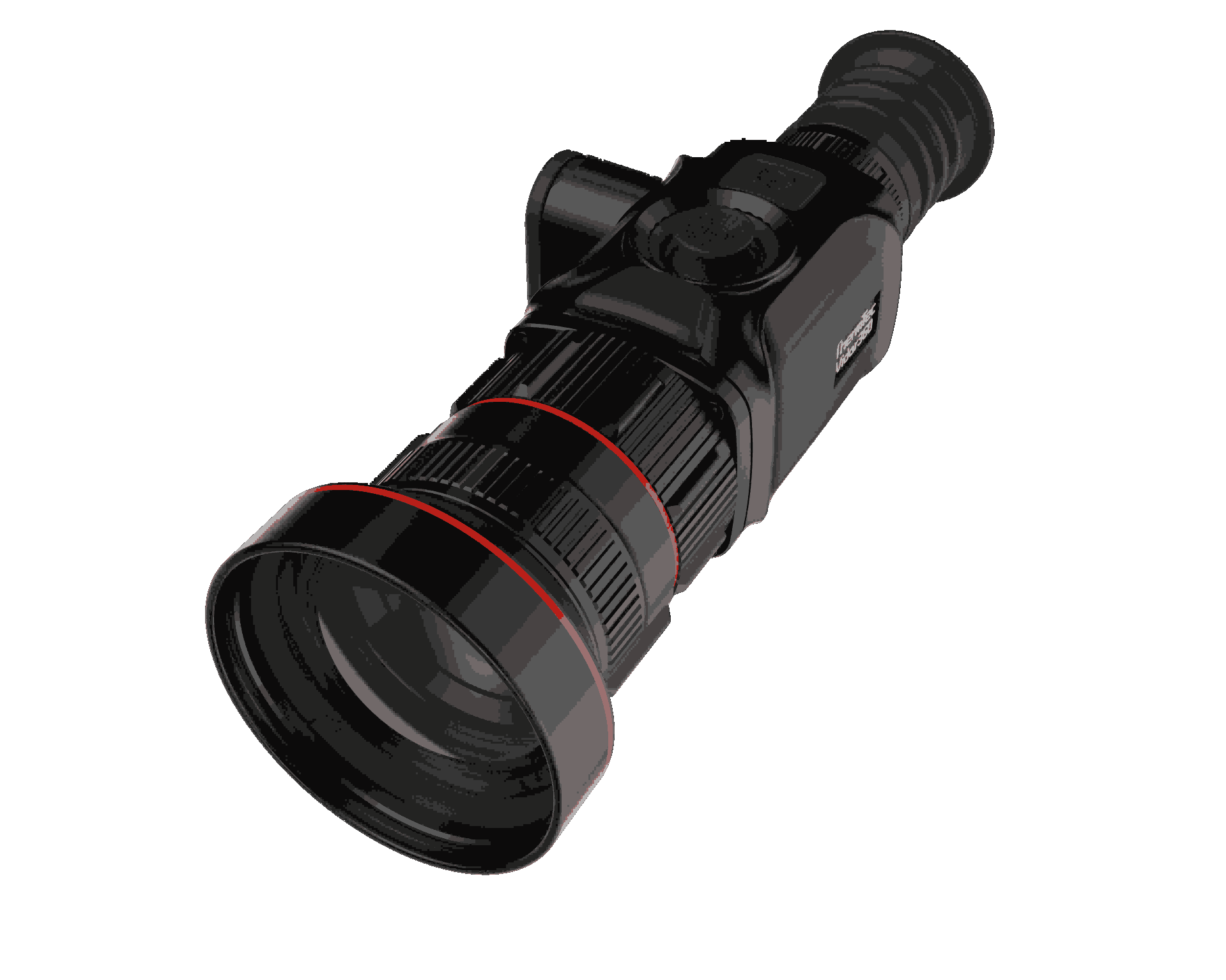

High-Precision Zoom
Smooth & rapid 1.0-5.0X HD zooming ensures excellent sharpness and the highest resolution of details from minimum to maximum magnification.
TTwo Way Wi-Fi Connection
Support both Wi-Fi and hotspot connections; Real-time image transmission
64G storage
A 64GB of memory card enables a large storing of photos and videos.

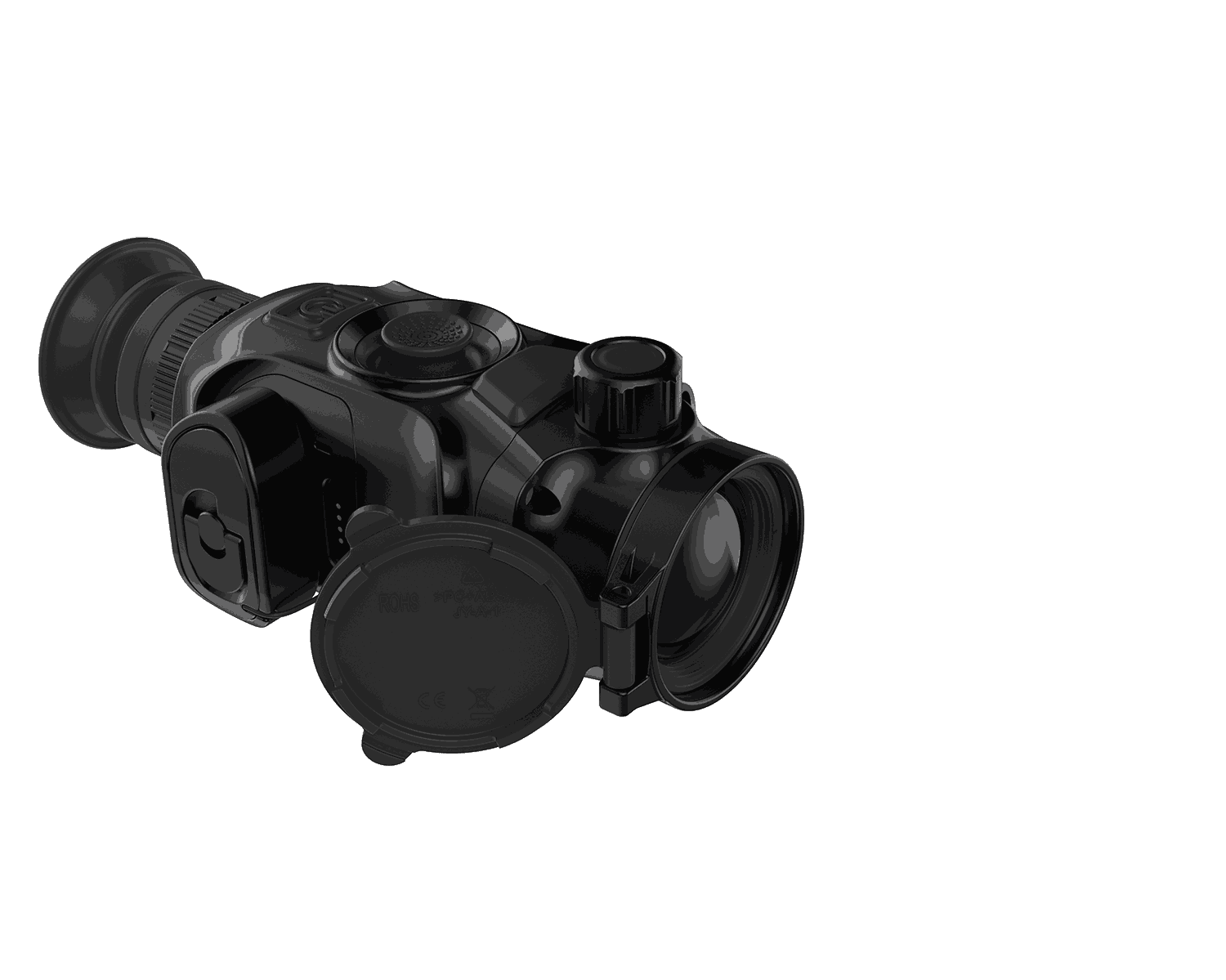

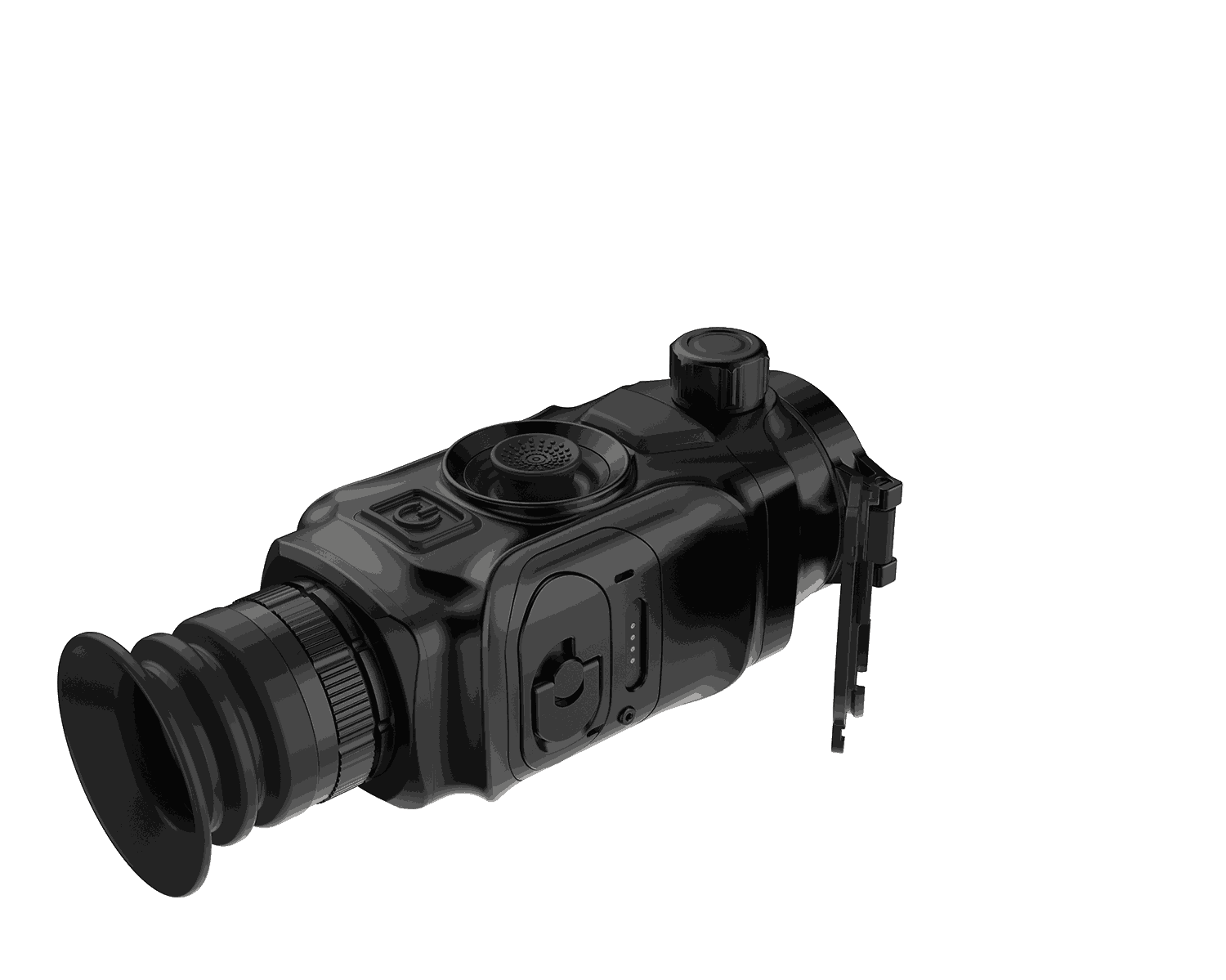

Easy Battery Installation
The battery's anode and cathode can be installed interchangeably, helping users to complete the battery replacement more quickly at night.

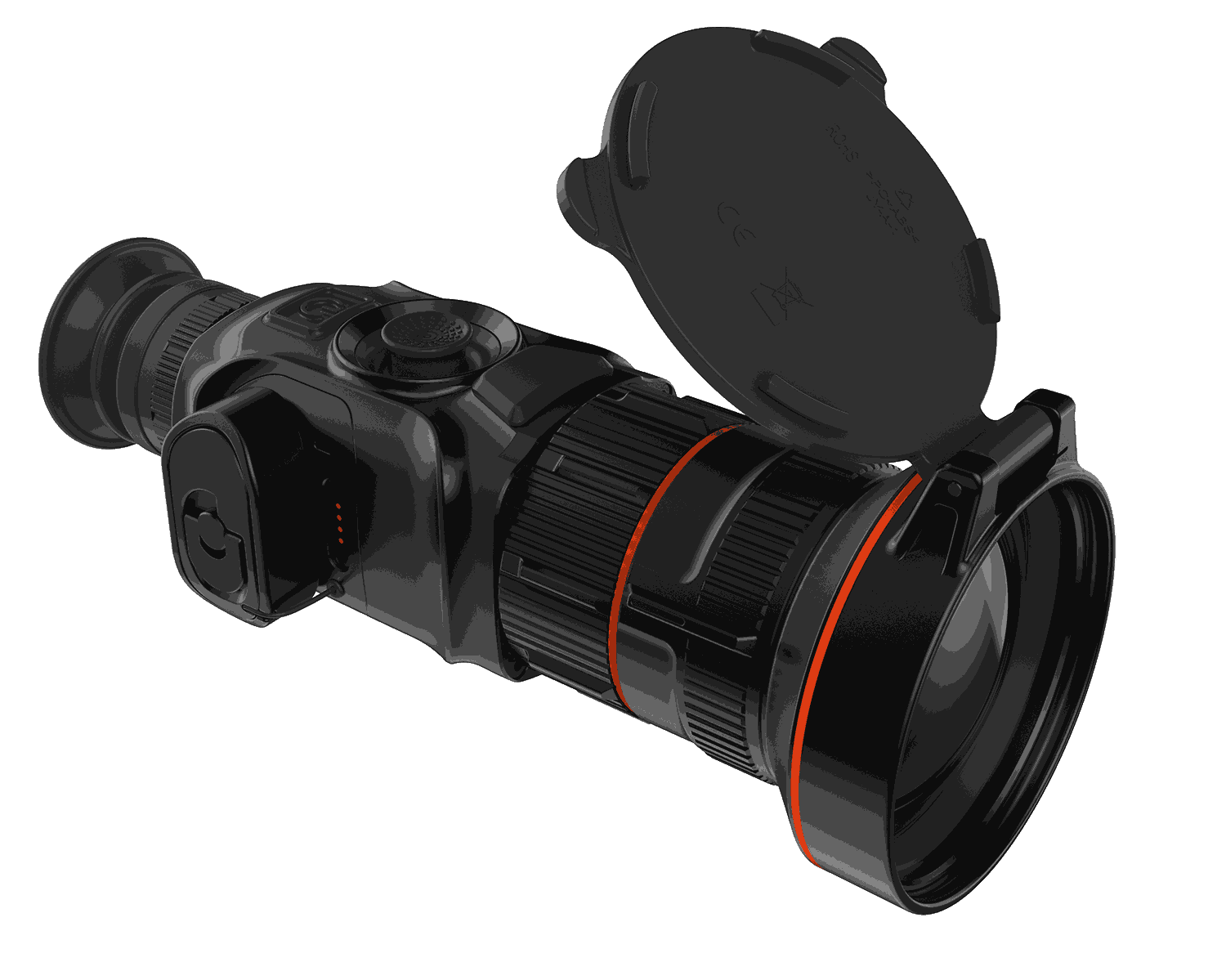

IP67 Protection Rate
Provided with IP67-rated weatherproof performance, it is protected from heavy rainfall, snow, smoke, smog, or dust.
Specifications
335
Vidar
/
335L
Vidar
/
350
Vidar
/
350L
Vidar
/
360
Vidar
/
360L
Vidar
/
635
Vidar
/
635L
Vidar
/
650
Vidar
/
650L
Vidar
/
660
Vidar
/
660L
Vidar
/
Resolution, pixel 384*288/12
Spectral 8-14µm
NETD ≤25mk
Frame rate 50HZ
Objective lens 35mm, F/1.0
Field of view 7.5°x5.6°
Magnification 3.2X
Digital zoom 1 - 5X continuous zoom
Eye relief 45mm
Exit pupil 6mm
Diopter -5 ~ +5
Click range, m @100 m (H/V) 3,6m/3,6m
Reticle 7
Rectile color Black and white
Display type AMOLED
Resolution, pixel 1024x768
Display size 0.39 inch
Color palette 6
Max. recoil power on rifled weapon 6000J
Mounting brackets on weapon Standard Picatinny Rail
Shooting record Support
RAV Yes
Auto zeroing Yes
Manual zeroing Yes
Zeroing profiles 5
Picture-in-picture Yes
Image calibration Via lens cover
Photo/video playback Yes
Inbuilt memory 64G
Magnetic interface  Data transfer
Wi-Fi Yes
Replaceable battery 18650x2
Battery reverse connection Yes
Battery life  14h
Operating temperature  -20℃—+50℃
IP rating IP67
Weight, g 591
Size, mm 160x60x70
Magnetic cable Magnetic interface data cable
Other Accessory Standard Picatinny Rail,eyeshade and etc.
ADD TO COMPARE
ALL PARAMETERS
DOWNLOAD
Resolution, pixel 384*288/12
Spectral 8-14µm
NETD ≤25mk
Frame rate 50HZ
Objective lens 35mm, F/1.0
Field of view 7.5°x5.6°
Magnification 3.2X
Digital zoom 1 - 5X continuous zoom
Eye relief 45mm
Exit pupil 6mm
Diopter -5 ~ +5
Click range, m @100 m (H/V) 3,6m/3,6m
Reticle 7
Rectile color Black and white
Display type AMOLED
Resolution, pixel 1024x768
Display size 0.39 inch
Color palette 6
Max. recoil power on rifled weapon 6000J
Mounting brackets on weapon Standard Picatinny Rail
Shooting record Support
RAV Yes
Auto zeroing Yes
Manual zeroing Yes
Zeroing profiles 5
Picture-in-picture Yes
Image calibration Via lens cover
Photo/video playback Yes
Inbuilt memory 64G
Magnetic interface  Data transfer
Wi-Fi Yes
Replaceable battery 18650x2
Battery reverse connection Yes
Battery life  14h
Operating temperature  -20℃—+50℃
IP rating IP67
Weight, g 631
Size, mm 160x60x70
Magnetic cable Magnetic interface data cable
Other Accessory Standard Picatinny Rail,eyeshade and etc.
ADD TO COMPARE
ALL PARAMETERS
DOWNLOAD
Resolution, pixel 384*288
Pixel pitch 12µm
NETD ≤25mk
Spectral range 8-14µm
Frame rate 50HZ
Objective lens 50mm, F/1.0
Field of view 5.3°x4.0°
Magnification 4.6X
Digital zoom 1 - 5X continuous zoom
Eye relief 45mm
Exit pupil 6mm
Diopter -5 ~ +5D
Click range, m @100 m (H/V) 3,6m/3,6m
Reticle 7
Rectile color Black and white
Display type AMOLED
Resolution, pixel 1024x768
Display size 0.39 inch
Color palette 6
Max. recoil power on rifled weapon 6000J
Mounting brackets on weapon Standard Picatinny Rail
RAV Yes
Auto zeroing Yes
Manual zeroing Yes
Zeroing profiles 5
Picture-in-picture Yes
Image calibration Via lens cover
Photo/video playback Yes
Inbuilt memory 64G
Magnetic interface  Data transfer
Wi-Fi Yes
Replaceable battery 18650x2
Battery reverse connection Yes
Battery life  14h
Operating temperature  -20℃—+50℃
IP rating IP67
Weight, g 710
Size, mm 203x84x87
Magnetic cable Magnetic interface data cable
Other Accessory Standard Picatinny Rail,eyeshade and etc.
ADD TO COMPARE
ALL PARAMETERS
DOWNLOAD
Resolution, pixel 384*288
Pixel pitch 12µm
NETD ≤25mk
Spectral range 8-14µm
Frame rate 50HZ
Objective lens 50mm, F/1.0
Field of view 5.3°x4.0°
Magnification 4.6X
Digital zoom 1 - 5X continuous zoom
Eye relief 45mm
Exit pupil 6mm
Diopter -5 ~ +5D
Click range, m @100 m (H/V) 3,6m/3,6m
Reticle 7
Rectile color Black and white
Display type AMOLED
Resolution, pixel 1024x768
Display size 0.39 inch
Color palette 6
Max. recoil power on rifled weapon 6000J
Mounting brackets on weapon Standard Picatinny Rail
RAV Yes
Auto zeroing Yes
Manual zeroing Yes
Zeroing profiles 5
Picture-in-picture Yes
Laser rangefinder 1,200m
Image calibration Via lens cover
Photo/video playback Yes
Inbuilt memory 64G
Magnetic interface  Data transfer
Wi-Fi Yes
Replaceable battery 18650x2
Battery reverse connection Yes
Battery life  11h
Operating temperature  -20℃—+50℃
IP rating IP67
Weight, g 750
Size, mm 203x100x87
Magnetic cable Magnetic interface data cable
Other Accessory Standard Picatinny Rail,eyeshade and etc.
ADD TO COMPARE
ALL PARAMETERS
DOWNLOAD
Resolution, pixel 384*288/12
Spectral 8-14µm
NETD ≤25mk
Frame rate 50HZ
Objective lens 20/60mm F1.0
Field of view 13.1°x9.8°/ 4.4°x3.3°
Magnification 1.8X/5.5X
Digital zoom 1 - 5X continuous zoom
Eye relief 45mm
Exit pupil 6mm
Diopter -5 ~ +5
Click range, m @100 m (H/V) 3,6m/3,6m
Reticle 7
Rectile color Black and white
Display type AMOLED
Resolution, pixel 1024x768
Display size 0.39 inch
Color palette 6
Max. recoil power on rifled weapon 6000J
Mounting brackets on weapon Standard Picatinny Rail
Shooting record Support
RAV Yes
Auto zeroing Yes
Manual zeroing Yes
Zeroing profiles 5
Picture-in-picture Yes
Image calibration Via lens cover
Photo/video playback Yes
Inbuilt memory 64G
Magnetic interface  Data transfer
Wi-Fi Yes
Replaceable battery 18650x2
Battery reverse connection Yes
Battery life  14h
Operating temperature  -20℃—+50℃
IP rating IP67
Weight, g 880
Size, mm 220x84x87
Magnetic cable Magnetic interface data cable
Other Accessory Standard Picatinny Rail,eyeshade and etc.
ADD TO COMPARE
ALL PARAMETERS
DOWNLOAD
Resolution, pixel 384*288/12
Spectral 8-14µm
NETD ≤25mk
Frame rate 50HZ
Objective lens 20/60mm F1.0
Field of view 13.1°x9.8°/ 4.4°x3.3°
Magnification 1.8X/5.5X
Digital zoom 1 - 5X continuous zoom
Eye relief 45mm
Exit pupil 6mm
Diopter -5 ~ +5
Click range, m @100 m (H/V) 3,6m/3,6m
Reticle 7
Rectile color Black and white
Display type AMOLED
Resolution, pixel 1024x768
Display size 0.39 inch
Color palette 6
Max. recoil power on rifled weapon 6000J
Mounting brackets on weapon Standard Picatinny Rail
Shooting record Support
RAV Yes
Auto zeroing Yes
Manual zeroing Yes
Zeroing profiles 5
Picture-in-picture Yes
Image calibration Via lens cover
Photo/video playback Yes
Inbuilt memory 64G
Magnetic interface  Data transfer
Wi-Fi Yes
Replaceable battery 18650x2
Battery reverse connection Yes
Battery life  14h
Operating temperature  -20℃—+50℃
IP rating IP67
Weight, g 920
Size, mm 220x100x87
Magnetic cable Magnetic interface data cable
Other Accessory Standard Picatinny Rail,eyeshade and etc.
ADD TO COMPARE
ALL PARAMETERS
DOWNLOAD
Resolution, pixel 640x512/12
Spectral 8-14µm
NETD ≤25mk
Frame rate 50HZ
Objective lens 35mm,F1.0
Field of view 12.5°x10.0°
Magnification 1.9X
Digital zoom 1 - 5X continuous zoom
Eye relief 45mm
Exit pupil 6mm
Diopter -5 ~ +5
Click range, m @100 m (H/V) 3,6m/3,6m
Reticle 7
Rectile color Black and white
Display type AMOLED
Resolution, pixel 1024x768
Display size 0.39 inch
Color palette 6
Max. recoil power on rifled weapon 6000J
Mounting brackets on weapon Standard Picatinny Rail
Shooting record Support
RAV Yes
Auto zeroing Yes
Manual zeroing Yes
Zeroing profiles 5
Picture-in-picture Yes
Image calibration Via lens cover
Photo/video playback Yes
Inbuilt memory 64G
Magnetic interface  Data transfer
Wi-Fi Yes
Replaceable battery 18650x2
Battery reverse connection Yes
Battery life  13h
Operating temperature  -20℃—+50℃
IP rating IP67
Weight, g 591
Size, mm 160x60x70
Magnetic cable Magnetic interface data cable
Other Accessory Standard Picatinny Rail,eyeshade and etc.
ADD TO COMPARE
ALL PARAMETERS
DOWNLOAD
Resolution, pixel 640x512/12
Spectral 8-14µm
NETD ≤25mk
Frame rate 50HZ
Objective lens 35mm, F1.0
Field of view 12.5°x10.0°
Magnification 1.9X
Digital zoom 1 - 5X continuous zoom
Eye relief 45mm
Exit pupil 6mm
Diopter -5 ~ +5
Click range, m @100 m (H/V) 3,6m/3,6m
Reticle 7
Rectile color Black and white
Display type AMOLED
Resolution, pixel 1024x768
Display size 0.39 inch
Color palette 6
Max. recoil power on rifled weapon 6000J
Mounting brackets on weapon Standard Picatinny Rail
Shooting record Support
RAV Yes
Auto zeroing Yes
Manual zeroing Yes
Zeroing profiles 5
Picture-in-picture Yes
Image calibration Via lens cover
Photo/video playback Yes
Inbuilt memory 64G
Magnetic interface  Data transfer
Wi-Fi Yes
Replaceable battery 18650x2
Battery reverse connection Yes
Battery life  14h
Operating temperature  -20℃—+50℃
IP rating IP67
Weight, g 631
Size, mm 160x90x70
Magnetic cable Magnetic interface data cable
Other Accessory Standard Picatinny Rail,eyeshade and etc.
ADD TO COMPARE
ALL PARAMETERS
DOWNLOAD
Resolution, pixel 640*512
Pixel pitch 12µm
NETD ≤25mk
Spectral range 8-14µm
Frame rate 50HZ
Objective lens 50mm, F/1.0
Field of view 8.8°x7.0°
Magnification 2.7X
Digital zoom 1 - 5X continuous zoom
Eye relief 45mm
Exit pupil 6mm
Diopter -5 ~ +5D
Click range, m @100 m (H/V) 3,6m/3,6m
Reticle 7
Rectile color Black and white
Display type AMOLED
Resolution, pixel 1024x768
Display size 0.39 inch
Color palette 6
Max. recoil power on rifled weapon 6000J
Mounting brackets on weapon Standard Picatinny Rail
RAV Yes
Auto zeroing Yes
Manual zeroing Yes
Zeroing profiles 5
Picture-in-picture Yes
Image calibration Via lens cover
Photo/video playback Yes
Inbuilt memory 64G
Magnetic interface  Data transfer
Wi-Fi Yes
Replaceable battery 18650x2
Battery reverse connection Yes
Battery life  14h
Operating temperature  -20℃—+50℃
IP rating IP67
Weight, g 710
Size, mm 203x84x87
Magnetic cable Magnetic interface data cable
Other Accessory Standard Picatinny Rail,eyeshade and etc.
ADD TO COMPARE
ALL PARAMETERS
DOWNLOAD
Resolution, pixel 640*512
Pixel pitch 12µm
NETD ≤25mk
Spectral range 8-14µm
Frame rate 50HZ
Objective lens 50mm, F/1.0
Field of view 8.8°x7.0°
Magnification 2.7X
Digital zoom 1 - 5X continuous zoom
Eye relief 45mm
Exit pupil 6mm
Diopter -5 ~ +5D
Click range, m @100 m (H/V) 3,6m/3,6m
Reticle 7
Rectile color Black and white
Display type AMOLED
Resolution, pixel 1024x768
Display size 0.39 inch
Color palette 6
Max. recoil power on rifled weapon 6000J
Mounting brackets on weapon Standard Picatinny Rail
RAV Yes
Auto zeroing Yes
Manual zeroing Yes
Zeroing profiles 5
Picture-in-picture Yes
Laser rangefinder 1200m
Image calibration Via lens cover
Photo/video playback Yes
Inbuilt memory 64G
Magnetic interface  Data transfer
Wi-Fi Yes
Replaceable battery 18650x2
Battery reverse connection Yes
Battery life  10h
Operating temperature  -20℃—+50℃
IP rating IP67
Weight, g 750
Size, mm 203x100x87
Magnetic cable Magnetic interface data cable
Other Accessory Standard Picatinny Rail,eyeshade and etc.
ADD TO COMPARE
ALL PARAMETERS
DOWNLOAD
Resolution, pixel 640x512/12
Spectral 8-14µm
NETD ≤25mk
Frame rate 50HZ
Objective lens 20/60mm, F1.0
Field of view 21.7°x17.4°/ 7.3°x5.9°
Magnification 1.1X/3.2X
Digital zoom 1 - 5X continuous zoom
Eye relief 45mm
Exit pupil 6mm
Diopter -5 ~ +5
Click range, m @100 m (H/V) 3,6m/3,6m
Reticle 7
Rectile color Black and white
Display type AMOLED
Resolution, pixel 1024x768
Display size 0.39 inch
Color palette 6
Max. recoil power on rifled weapon 6000J
Mounting brackets on weapon Standard Picatinny Rail
Shooting record Support
RAV Yes
Auto zeroing Yes
Manual zeroing Yes
Zeroing profiles 5
Picture-in-picture Yes
Image calibration Via lens cover
Photo/video playback Yes
Inbuilt memory 64G
Magnetic interface  Data transfer
Wi-Fi Yes
Replaceable battery 18650x2
Battery reverse connection Yes
Battery life  14h
Operating temperature  -20℃—+50℃
IP rating IP67
Weight, g 880
Size, mm 220x84x87
Magnetic cable Magnetic interface data cable
Other Accessory Standard Picatinny Rail,eyeshade and etc.
ADD TO COMPARE
ALL PARAMETERS
DOWNLOAD
Resolution, pixel 640x512/12
Spectral 8-14µm
NETD ≤25mk
Frame rate 50HZ
Objective lens 20/60mm, F1.0
Field of view 21.7°x17.4°/ 7.3°x5.9°
Magnification 1.1X/3.2X
Digital zoom 1 - 5X continuous zoom
Eye relief 45mm
Exit pupil 6mm
Diopter -5 ~ +5
Click range, m @100 m (H/V) 3,6m/3,6m
Reticle 7
Rectile color Black and white
Display type AMOLED
Resolution, pixel 1024x768
Display size 0.39 inch
Color palette 6
Max. recoil power on rifled weapon 6000J
Mounting brackets on weapon Standard Picatinny Rail
Shooting record Support
RAV Yes
Auto zeroing Yes
Manual zeroing Yes
Zeroing profiles 5
Picture-in-picture Yes
Image calibration Via lens cover
Photo/video playback Yes
Inbuilt memory 64G
Magnetic interface  Data transfer
Wi-Fi Yes
Replaceable battery 18650x2
Battery reverse connection Yes
Battery life  14h
Operating temperature  -20℃—+50℃
IP rating IP67
Weight, g 920
Size, mm 220x100x87
Magnetic cable Magnetic interface data cable
Other Accessory Standard Picatinny Rail,eyeshade and etc.
ADD TO COMPARE
ALL PARAMETERS
DOWNLOAD
HAVE A QUESTION?
Product Consultation Form
CONTACT US
© ThermTec Technology Co., Ltd. 2023 SiteMap Product Cookie Policy Privacy Policy RMA Policy
thermal imaging crossbow scope , thermal imager for hunting , best thermal monoculars , thermal image monocular , thermal reflex sight , infrared scope
